Description
| Specification | Details |
|---|---|
| Unique Features | PCIe Gen5 (Graphics & M.2), Dual Channel DDR5, 16+2+1 Power Phase Design, 80A Dr.MOS, Enlarged Heatsink Armor, Integrated I/O Shield, 20K Black Capacitors, 5G LAN, Wi-Fi 7, Lightning Gaming Ports, BIOS Flashback, Auto Driver Installer, Post Status Checker |
| CPU Support | AMD Socket AM5 Ryzen 9000, 8000 & 7000 Series Processors |
| Chipset | AMD X870 |
| Memory | 4 x DDR5 DIMM Slots, Dual Channel DDR5, Supports ECC & Non-ECC Unbuffered Memory, Up to DDR5 8000+ (OC), Maximum Capacity 256GB, Supports XMP & EXPO |
| BIOS | 256Mb AMI UEFI Legal BIOS with GUI Support |
| Graphics Output | Integrated AMD RDNA Graphics (CPU Dependent), 1 x HDMI 2.1 (4K @ 120Hz), 2 x USB4 Type-C (8K @ 30Hz), HDR & HDCP 2.3 Support |
| Audio | Realtek ALC4082 Codec, 7.1 Channel HD Audio, Nahimic Audio, Individual PCB Audio Layers |
| LAN | Realtek RTL8126 5 Gigabit LAN (10/100/1000/2500/5000 Mbps) |
| Wireless Connectivity | Wi-Fi 7 (802.11be), Dual-Band & 6GHz Support, Bluetooth 5.4, MU-MIMO Technology |
| Expansion Slots | 1 x PCIe 5.0 x16, 2 x PCIe 3.0 x16 (x4 Mode), 1 x M.2 Key-E WiFi Slot, 15μ Gold Contact PCIe Slot |
| M.2 Storage | 2 x PCIe Gen5 x4 M.2 (128Gb/s), 2 x PCIe Gen4 x4 M.2 (64Gb/s), NVMe Boot Support |
| SATA Storage | 2 x SATA3 6Gb/s Ports |
| RAID Support | SATA: RAID 0, RAID 1 NVMe: RAID 0, RAID 1, RAID 10 |
| USB Ports | 2 x USB4 Type-C (Rear, 40Gb/s) 1 x USB 3.2 Gen2x2 Type-C (Front, 20Gb/s) 1 x USB 3.2 Gen1 Type-C (Rear) 11 x USB 3.2 Gen1 Type-A 10 x USB 2.0 Ports |
| Internal Connectors | TPM Header, Thermistor Header, RGB Header, 3 x ARGB Headers, 2 x CPU Fan Headers, 3 x Chassis Fan Headers, AIO Pump Header, 24-pin ATX Power, Dual 8-pin CPU Power, Front Audio, USB 2.0 Headers, USB 3.2 Gen1 Headers, USB 3.2 Gen2x2 Type-C Header |

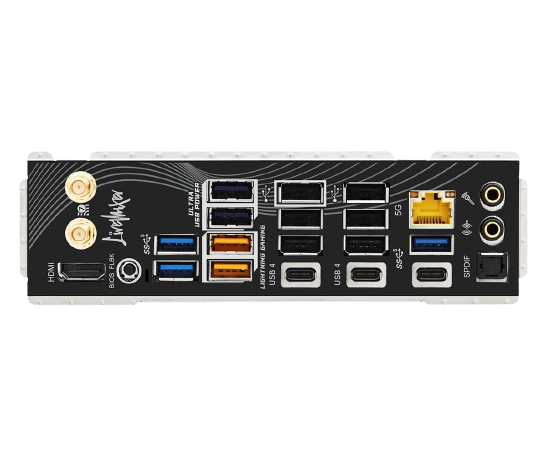

| Rear I/O Ports | 2 x WiFi Antenna Ports, 1 x HDMI, 1 x Optical SPDIF, 2 x USB4 Type-C, 1 x USB 3.2 Gen1 Type-C, 7 x USB 3.2 Gen1 Type-A, 6 x USB 2.0, 1 x 5G LAN, BIOS Flashback Button, Gold Audio Line-Out, Gold Microphone Jack |
| Software | ASRock Motherboard Utility (A-Tuning), ASRock Polychrome Sync |
| UEFI Features | EZ Mode, Full HD UEFI, Auto Driver Installer, Instant Flash |
| Accessories | 2 x SATA Data Cables, 2 x WiFi 2.4/5/6GHz Antennas, 1 x Thermistor Cable |
| Form Factor | ATX Form Factor, 30.5cm x 24.4cm, 8-Layer PCB |
| Operating System | Windows 10 64-bit, Windows 11 64-bit |
| Certifications | FCC, CE, ErP/EuP Ready, CEC Tier II Ready |
