Description

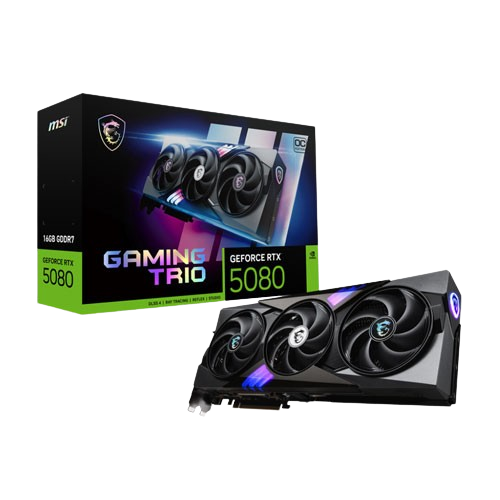

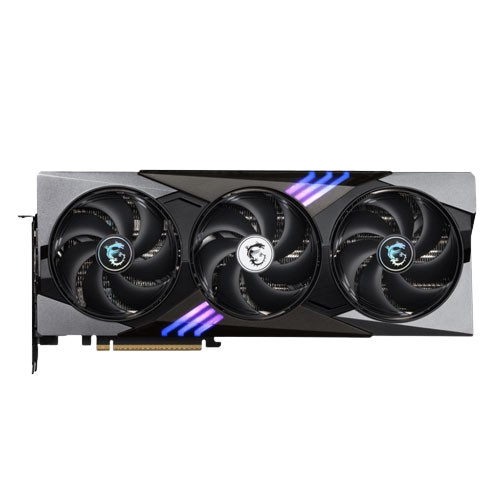

| Marketing Name | GeForce RTX™ 5080 16G GAMING TRIO OC |
|---|---|
| Model Name | G5080-16GTC |
| Graphics Processing Unit | NVIDIA® GeForce RTX™ 5080 |
| Interface | PCI Express® Gen 5 |
| Core Clocks | Extreme Performance: 2715 MHz (MSI Center), Boost: 2700 MHz (GAMING & SILENT Mode) |
| CUDA® CORES | 10752 Units |
| Memory Speed | 30 Gbps |
| Memory | 16GB GDDR7 |
| Memory Bus | 256-bit |

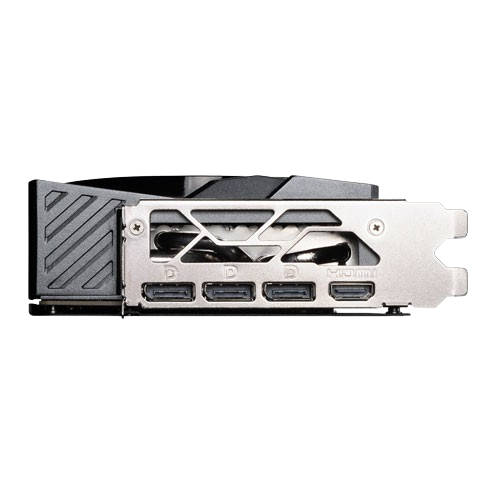

| Output | DisplayPort x 3 (v2.1b), HDMI™ x 1 (HDMI™ 2.1b: up to 4K 480Hz or 8K 120Hz with DSC, Gaming VRR, HDR) |
| HDCP Support | Yes |
| Power Consumption | 360 W |
| Power Connectors | 16-pin x 1 |
| Recommended PSU | 850 W |
| Card Dimension (mm) | 338 x 140 x 50 mm |
| Weight (Card / Package) | 1362 g / 1885 g |
| DirectX Version Support | 12 Ultimate |
| OpenGL Version Support | 4.6 |
| Maximum Displays | 4 |
| G-SYNC® Technology | Yes |
| Digital Maximum Resolution | 7680 x 4320 |
