Core Specifications

• Graphic Engine: NVIDIA® GeForce RTX™ 5090 D

• AI Performance: 3593 TOPs

• Bus Standard: PCI Express 5.0

• OpenGL Support: OpenGL® 4.6

Memory & Performance

• Video Memory: 32GB GDDR7

• Memory Speed: 28 Gbps

• Memory Interface: 512-bit

• CUDA Cores: 21,760

• Engine Clock:

  • OC Mode: 2610 MHz

  • Default Mode: 2580 MHz (Boost Clock)

Display & Connectivity

• Max Digital Resolution: 7680 x 4320 (8K)

• Ports:

  • 2x Native HDMI 2.1b

  • 3x Native DisplayPort 2.1b

• HDCP Support: Yes (2.3)

• Max Display Support: 4 Monitors

• NVLink / Crossfire Support: No

Power & Cooling

• Recommended PSU: 1000W

• Power Connector: 1x 16-pin

• Slot Size: 3.8 Slot

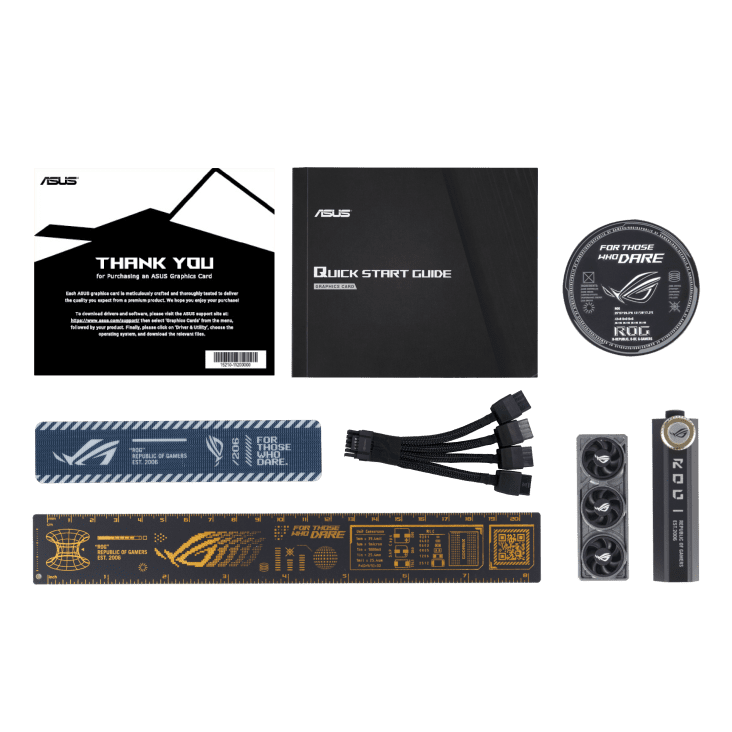

Accessories Included

• 1x Speedsetup Manual

• 1x ROG Graphics Card Holder

• 1x ROG Velcro Hook & Loop

• 1x ROG Magnet

• 1x ROG Graphics Card Keycap

• 1x ROG PCB Ruler

• 1x Thank You Card

• 1x Adapter Cable (1 to 4)

Software Support

• Compatible Software:

  • ASUS GPU Tweak III

  • MuseTree

  • GeForce Game Ready Driver & Studio Driver
    (All software available for download from the official support site.)

Physical Dimensions

• Size: 357.6 x 149.3 x 76 mm (14.1 x 5.9 x 3 inches)

RGB & Aesthetics

• AURA SYNC: ARGB Support
