Description
|
|
|
|
|---|---|---|---|

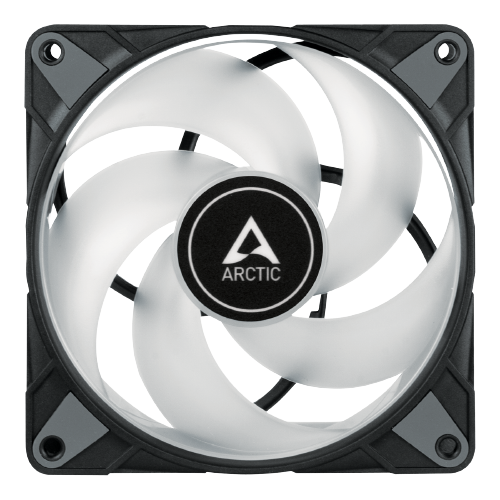

RGB for Full Colour ControlThe P12 PWM PST A-RGB has 12 digital A-RGB LEDs in the fan scar. These can be controlled independently of each other and are compatible with the common A-RGB standards of leading motherboard manufacturers. The fan can thus be fully illuminated directly via the A-RGB mainboard connector or via an external controller and synchronised with the illumination of other hardware. | 0dB Mode – Zero RPMThe speed of the fan can be throttled down to standstill via PWM. This allows silent operation in IDLE and at the same time promises maximum performance when required. | Optimised for high static pressureThe P12 PWM PST A-RGB operates with a focused airflow and a high static pressure. The fan thus promises extremely efficient cooling, even with increased air resistance, and is therefore suitable for use on heat sinks, radiators and filters. | 200 to 2000 RPM (0 RPM <5 %) controlled via PWM PSTWith a wide speed range and the innovative PWM Sharing Technology (PST), the fan speed of the P12 PWM PST A-RGB can be controlled synchronously with all other fans. This reduces noise to a minimum while promising maximum cooling performance. |
General data
Performance
Fan Speed: 200-2000 RPM (0 RPM <5 %)
Airflow: 48.8 CFM/82.91 m³/h
Static Pressure: 1.85 mm H₂O
Noise Level: 0.3 Sone
Operating Ambient Temperature: 0 – 40 °C
Fan & Electrical Fan Specifications
Fan Frame: Standard
Control Type: PWM PST
Connector: 4-Pin-Connector + 4-Pin-Socket
Fan Bearing: Fluid Dynamic Bearing
Typical Voltage: 12 V DC
Current: 0.11 A
Cable Length: 400 mm + 80 mm
RGB Specifications
Number of LEDs: 12 RGB LEDs
Typical Voltage: 5.0 V
Current: 0.4 A
Connector: 3-Pin 5V-DI-GND Connector + 3-Pin Socket
