Description
| Specification | Details |
|---|---|
| Unique Features | PCIe Gen5 (Graphics & M.2), Dual Channel DDR5, 8+2+1 Dr.MOS Power Phase Design, 2.5G LAN, Wi-Fi 7E, BIOS Flashback Button, Auto Driver Installer, Post Status Checker |
| CPU Support | AMD Socket AM5 Ryzen 9000, 8000 & 7000 Series Processors |
| Chipset | AMD B850 |
| Memory | 4 x DDR5 DIMM Slots, Dual Channel DDR5, Supports ECC & Non-ECC Unbuffered Memory, Up to DDR5 8000+ (OC), Maximum Capacity 256GB, XMP & EXPO Support |
| BIOS | 256Mb AMI UEFI Legal BIOS with GUI Support |
| Graphics Output | Integrated AMD RDNA Graphics (CPU Dependent), 1 x HDMI 2.1 (4K @ 120Hz), 1 x DisplayPort 1.4 (4K @ 120Hz), HDR & HDCP 2.3 Support |
| Audio | Realtek ALC897 Audio Codec, 7.1 Channel HD Audio |
| LAN | Dragon RTL8125BG 2.5 Gigabit LAN (10/100/1000/2500 Mbps), Dragon LAN Software Support |
| Wireless Connectivity | Wi-Fi 6E (802.11axe), Dual-Band 2×2 with 6GHz Support, Bluetooth 5.2, MU-MIMO Technology |
| Expansion Slots | 1 x PCIe 5.0 x16, 1 x PCIe 4.0 x4, 1 x M.2 Key-E WiFi Slot, 15μ Gold Contact PCIe Slot |
| M.2 Storage | 1 x PCIe Gen5 x4 M.2 (128Gb/s), 2 x PCIe Gen4 x4 M.2 (64Gb/s), NVMe Boot Support |
| SATA Storage | 4 x SATA3 6Gb/s Ports |
| RAID Support | SATA RAID 0 / 1 / 10, NVMe RAID 0 / 1 / 10 |
| USB Ports | 1 x USB 3.2 Gen2 Type-C (Rear), 1 x USB 3.2 Gen2 Type-A (Rear), 1 x USB 3.2 Gen1 Type-C (Front), 6 x USB 3.2 Gen1 Type-A, 8 x USB 2.0 Ports |
| Internal Connectors | TPM Header, RGB Header, 3 x ARGB Headers, 2 x CPU Fan Headers, 3 x Chassis Fan Headers, 24-pin ATX Power, 8-pin + 4-pin CPU Power, Front Audio Header, USB 2.0 Headers, USB 3.2 Gen1 Headers, Front USB Type-C Header |

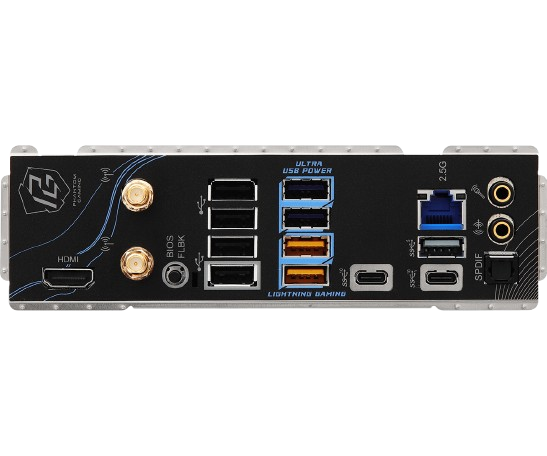

| Rear I/O Ports | 2 x WiFi Antenna Ports, 1 x HDMI, 1 x DisplayPort 1.4, 1 x USB 3.2 Gen2 Type-A, 1 x USB 3.2 Gen2 Type-C, 2 x USB 3.2 Gen1, 4 x USB 2.0, 1 x RJ-45 LAN, 1 x BIOS Flashback Button, HD Audio Jacks |
| Software | ASRock Motherboard Utility (A-Tuning), ASRock Dragon 2.5G LAN Software, ASRock Polychrome SYNC |
| UEFI Features | ASRock EZ Mode, Full HD UEFI, Auto Driver Installer, Instant Flash |
| Accessories | 1 x I/O Shield, 2 x SATA Data Cables, 2 x WiFi 2.4/5/6 GHz Antennas |
| Form Factor | Micro ATX, 24.4 cm × 24.4 cm |
| Operating System | Windows 10 64-bit, Windows 11 64-bit |
| Certifications | FCC, CE, ErP/EuP Ready |
