Description
| Category | Specification |
|---|---|
| Unique Features | Superb Productivity – PCIe Gen5 (Graphics & M.2), Dual Channel DDR5 Rock-Solid Durability – 12+2+1 Power Phase Dr.MOS, Enlarged Heatsink Armor, Flexible Integrated I/O Shield, 20K Long-life Black Capacitors Ultrafast Gaming – 2.5G LAN, Wi-Fi 7 Module EZ Update – BIOS Flashback Button, ASRock Auto Driver Installer EZ Troubleshooter – ASRock Post Status Checker |
| CPU Support | AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors |
| Chipset | AMD B850 |
| Memory | Dual Channel DDR5 Memory Technology 4 x DDR5 DIMM Slots Supports DDR5 ECC/non-ECC Unbuffered Memory up to 8000+(OC) Maximum Capacity: 256GB Supports XMP and EXPO Memory Profiles |
| BIOS | 256Mb AMI UEFI Legal BIOS with GUI Support |
| Graphics | Integrated AMD RDNA™ Graphics (CPU Dependent) 1 x HDMI 2.1 (4K @ 120Hz, HDR, HDCP 2.3) 1 x DisplayPort 1.4 with DSC (4K @ 120Hz, HDCP 2.3) |
| Audio | 7.1 Channel HD Audio (Realtek ALC1220 Codec) Content Protection Support Impedance Sensing on Rear Output Dedicated PCB Layers for Left/Right Audio Channels Nahimic Audio |
| LAN | Dragon RTL8125BG 2.5 Gigabit LAN Phantom Gaming LAN Software Support Smart Bandwidth Control Network Usage Statistics Gaming, Browser & Streaming Optimization |
| Wireless LAN | Wi-Fi 7 (802.11be) 2×2 Module Supports 2.4GHz / 5GHz / 6GHz Bands Bluetooth 5.4 MU-MIMO Technology 160MHz Channel Bandwidth Support |
| Expansion Slots | 1 x PCIe 5.0 x16 Slot 1 x PCIe 4.0 x4 Slot 1 x Vertical M.2 Key-E Slot for WiFi/Bluetooth Module 15μ Gold Contact PCIe x16 Slot |
| Storage | 1 x Blazing M.2 PCIe Gen5x4 (2280) 1 x M.2 PCIe Gen4x2 (2260/2280) 1 x Hyper M.2 PCIe Gen4x4 (2260/2280) 4 x SATA3 6Gb/s Ports NVMe SSD Boot Support |
| RAID | SATA RAID 0 / 1 / 10 NVMe RAID 0 / 1 / 10 |
| USB Ports | Rear: 1 x USB 3.2 Gen2 Type-C, 1 x USB 3.2 Gen2 Type-A, 2 x USB 3.2 Gen1, 4 x USB 2.0 Front: 1 x USB 3.2 Gen1 Type-C, 4 x USB 3.2 Gen1, 4 x USB 2.0 |
| Internal Connectors | 1 x SPI TPM Header 1 x Thermistor Cable Header 1 x Power LED & Speaker Header 1 x RGB LED Header 3 x Addressable RGB Headers 2 x CPU Fan Headers 3 x Chassis Fan Headers 1 x 24-pin ATX Power Connector 1 x 8-pin CPU Power Connector 1 x 4-pin CPU Power Connector 1 x Front Audio Header 2 x USB 2.0 Headers 2 x USB 3.2 Gen1 Headers 1 x Front USB Type-C Header |

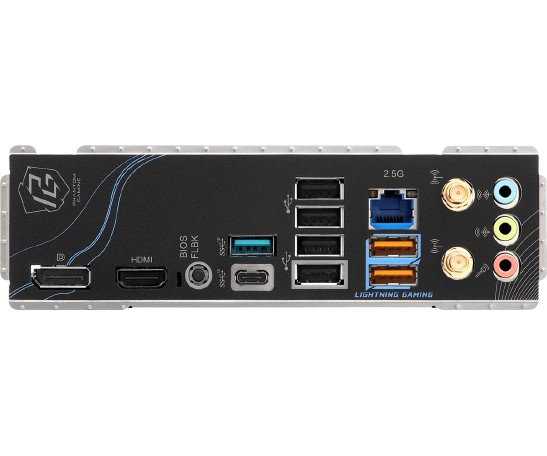

| Rear I/O Ports | 2 x Antenna Ports 1 x HDMI Port 1 x DisplayPort 1.4 1 x USB 3.2 Gen2 Type-C (10Gb/s) 1 x USB 3.2 Gen2 Type-A (10Gb/s) 2 x USB 3.2 Gen1 Ports 4 x USB 2.0 Ports 1 x RJ-45 LAN Port 1 x BIOS Flashback Button HD Audio Jacks (Line-In / Front Speaker / Microphone) |
| Software | ASRock Phantom Gaming Tuning ASRock Phantom Gaming LAN Software ASRock Polychrome SYNC |
| UEFI Features | ASRock EZ Mode ASRock Full HD UEFI ASRock Auto Driver Installer ASRock Instant Flash |
| Accessories | 2 x SATA Data Cables 2 x ASRock WiFi Antennas 1 x Thermistor Cable 2 x M.2 Screws 1 x M.2 Standoff |
| Form Factor | Micro ATX (24.4 cm x 24.4 cm), 2oz Copper PCB |
| Operating System | Windows 10 64-bit / Windows 11 64-bit |
| Certifications | FCC, CE, ErP/EuP Ready |
