Description
| Specification | Details |
|---|---|
| Unique Features | PCIe Gen5 (Graphics, M.2) Dual Channel DDR5 10+1+1+1+1 Power Phase, Dr.MOS for VCore+GT+SA 2.5G LAN Wi-Fi 6E (802.11axe) BIOS Flashback Button ASRock Auto Driver Installer ASRock Post Status Checker |
| CPU Support | Intel® Core™ Ultra Processors (Series 2) (LGA1851) |
| Chipset | Intel® B860 |
| Memory | 4 × DDR5 DIMM Slots Dual Channel DDR5 Supports up to DDR5-8666+ (OC) Max Capacity: 256GB Supports CUDIMM & XMP 3.0 |
| BIOS | 256Mb AMI UEFI Legal BIOS with GUI Support |
| Graphics Outputs | 1 × HDMI 2.1 (4K@120Hz) 1 × DisplayPort 1.4 DSC (8K@60Hz / 5K@120Hz) |
| Audio | 7.1 Channel HD Audio (Realtek ALC897 Codec) |
| LAN | Dragon RTL8125BG 2.5 Gigabit LAN |
| Wireless | Wi-Fi 6E (802.11axe) Bluetooth 5.3 MU-MIMO |
| Expansion Slots | 1 × PCIe 5.0 x16 Slot 1 × PCIe 4.0 x4 Slot 1 × M.2 Key-E Slot (Wi-Fi Module) |
| Storage | 1 × M.2 PCIe Gen5 x4 (Blazing M.2) 2 × M.2 PCIe Gen4 x4 (Hyper M.2) 4 × SATA III 6Gb/s |
| RAID Support | RAID 0, RAID 1, RAID 5, RAID 10 (SATA) |
| USB Ports | Rear: 1 × USB 3.2 Gen2x2 Type-C (20Gb/s) Rear: 3 × USB 3.2 Gen1 Type-A Rear: 2 × USB 2.0 Front: 1 × USB 3.2 Gen1 Type-C Front: 2 × USB 3.2 Gen1 Type-A Front: 4 × USB 2.0 |
| Internal Connectors | 1 × SPI TPM Header 1 × RGB Header 3 × Addressable RGB Headers 2 × CPU Fan Headers 3 × Chassis Fan Headers 1 × AIO Pump Header 24-pin ATX Power 8-pin + 4-pin CPU Power Front Audio Header 2 × USB 2.0 Headers 1 × USB 3.2 Gen1 Header 1 × Front USB Type-C Header |

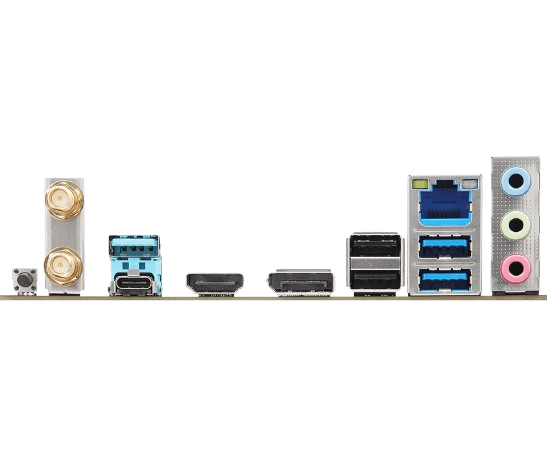

| Rear I/O | 2 × Wi-Fi Antenna Ports 1 × HDMI 1 × DisplayPort 1.4 1 × USB 3.2 Gen2x2 Type-C 3 × USB 3.2 Gen1 2 × USB 2.0 1 × RJ-45 LAN Port 1 × BIOS Flashback Button Audio Jacks (Line-In / Front Speaker / Mic) |
| Software | ASRock A-Tuning Dragon 2.5G LAN Software Polychrome SYNC |
| UEFI Features | EZ Mode Full HD UEFI My Favorites Auto Driver Installer Instant Flash |
| Accessories | 1 × I/O Shield 2 × SATA Data Cables 2 × Wi-Fi Antennas |
| Form Factor | Micro ATX (24.4 cm × 24.4 cm) |
| Operating System | Microsoft Windows® 11 64-bit |
| Certifications | FCC, CE, ErP/EuP Ready |
