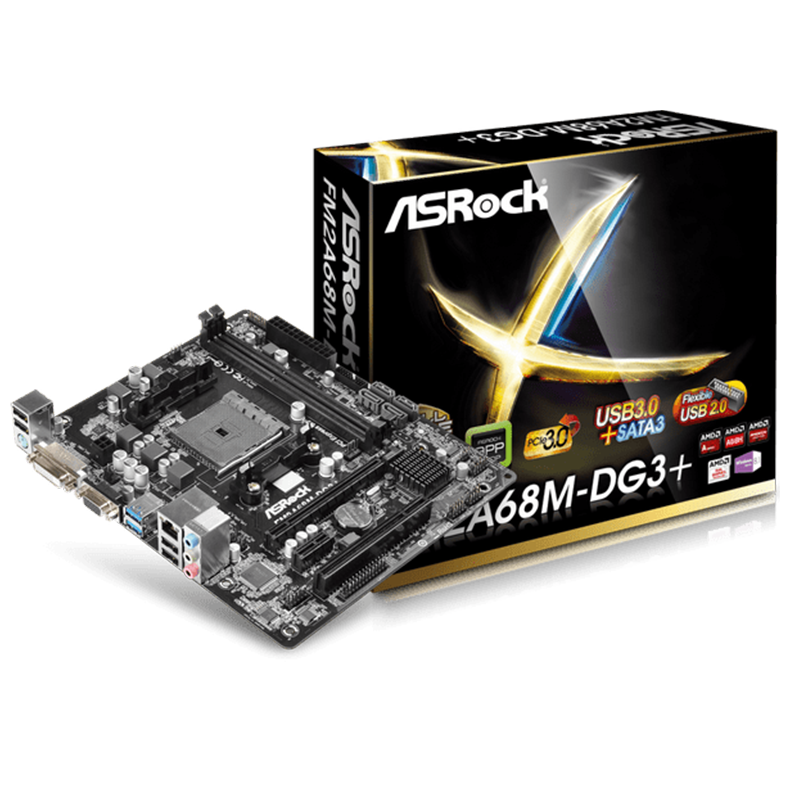

ASROCK FM2A68M-DG3 MOTHERBOARD is available at PCBUILDERS.LK. The ASROCK FM2A68M-DG3 MOTHERBOARD is designed for optimal performance and compatibility. It supports Socket FM2+ 95W and FM2 100W processors, making it a versatile choice for your computing needs. With a robust AMD A68H chipset, this motherboard ensures reliable operation and excellent performance for various applications.

This motherboard features dual channel DDR3 memory technology with two DIMM slots, supporting up to 32GB of memory. It accommodates DDR3 speeds of 2400+(OC), 2133(OC), 1866(OC), 1600, 1333, and 1066, providing flexibility for your memory requirements. The ASROCK FM2A68M-DG3 MOTHERBOARD also supports Intel® Extreme Memory Profile (XMP) and AMD Memory Profile Technology (AMP) for enhanced memory performance.

With a user-friendly 64Mb AMI UEFI Legal BIOS featuring GUI support, the ASROCK FM2A68M-DG3 MOTHERBOARD simplifies system management. Its jumper-free design and compliance with ACPI 1.1 ensure a seamless experience for users. Choose the ASROCK FM2A68M-DG3 MOTHERBOARD for your next PC build and enjoy the reliability and performance it brings.

CPU
– Supports Socket FM2+ 95W / FM2 100W processors

Chipset
– AMD A68H (Bolton-D2H)

Memory
– Dual Channel DDR3 Memory Technology
– 2 x DDR3 DIMM Slots
– Supports DDR3 2400+(OC)/2133(OC)/1866(OC)/1600/1333/1066 non-ECC, un-buffered memory
– Max. capacity of system memory: 32GB*
– Supports Intel® Extreme Memory Profile (XMP) 1.3 / 1.2
– Supports AMD Memory Profile Technology (AMP) up to AMP 2400
*Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.

BIOS
– 64Mb AMI UEFI Legal BIOS with GUI support
– Supports “Plug and Play”
– ACPI 1.1 Compliant wake up events
– Supports jumperfree
– SMBIOS 2.3.1 support
– DRAM, CPU Voltage multi-adjustment

Graphics
– Integrated AMD Radeon™ R7/R5 Series Graphics in A-series APU
– DirectX 11.1, Pixel Shader 5.0 with FM2+ CPU. DirectX 11, Pixel Shader 5.0 with FM2 CPU.
– Max. shared memory 2GB
– Dual graphics output options: support DVI-D and D-Sub by independent display controllers
– Supports Dual-link DVI-D with max. resolution up to 2560×1600 @ 60Hz
– Supports D-Sub with max. resolution up to 1920×1200 @ 60Hz
– Supports AMD Steady Video™ 2.0: New video post processing capability for automatic jitter reduction on home/online video
– Supports HDCP with DVI-D Port
– Supports Full HD 1080p Blu-ray (BD) playback with DVI-D Port

Audio
– 5.1 CH HD Audio (Realtek ALC662 Audio Codec)
– Supports Surge Protection (ASRock Full Spike Protection)

LAN
– PCIE x1 Gigabit LAN 10/100/1000 Mb/s
– Realtek RTL8111GR
– Supports Wake-On-WAN
– Supports Wake-On-LAN
– Supports Lightning/ESD Protection (ASRock Full Spike Protection)
– Supports LAN Cable Detection
– Supports Energy Efficient Ethernet 802.3az
– Supports PXE

Slots
– 1 x PCI Express 3.0 x16 Slot (PCIE1@ x16 mode)
– 1 x PCI Express 2.0 x1 Slot
– 1 x PCI Slot
– Supports AMD Dual Graphics
*PCIE 3.0 is only supported with FM2+ CPU. With FM2 CPU, it only supports PCIE 2.0.

Storage
– 4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug

Connector
– 1 x Print Port Header
– 1 x COM Port Header
– 1 x Chassis Intrusion Header
– 1 x TPM Header
– 1 x CPU Fan Connector (4-pin)
– 1 x Chassis Fan Connector (4-pin)
– 1 x Power Fan Connector (3-pin)
– 1 x 24 pin ATX Power Connector
– 1 x 4 pin 12V Power Connector
– 1 x Front Panel Audio Connector
– 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))
– 1 x Flexible USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))
*This Flexible USB 2.0 header allows users to connect a Front USB 3.0 Panel, and support two USB ports with 2.0/1.1 data rate.

Rear Panel I/O
– 1 x PS/2 Mouse/Keyboard Port
– 1 x D-Sub Port
– 1 x DVI-D Port
– 4 x USB 2.0 Ports (Supports ESD Protection (ASRock Full Spike Protection))
– 2 x USB 3.1 Gen1 Ports (AMD A68H (Bolton-D2H)) (Supports ESD Protection (ASRock Full Spike Protection))
– 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
– HD Audio Jacks: Line in / Front Speaker / Microphone

Software and UEFI
Software
– ASRock A-Tuning
– ASRock Disk Health Report
– ASRock USB Key
– ASRock APP Charger
– ASRock XFast RAM
– ASRock Restart to UEFI
– ASRock X-Boost
UEFI
– ASRock Interactive UEFI
– ASRock Instant Boot
– ASRock Instant Flash
– ASRock Internet Flash
– ASRock Crashless BIOS
– ASRock OMG (Online Management Guard)
– ASRock UEFI System Browser
– ASRock UEFI Tech Service
– ASRock Dehumidifier Function
– ASRock Easy RAID Installer
– ASRock Easy Driver Installer

Support CD
– Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar, Start8 (30 days trial)

Accessories
– Quick Installation Guide, Support CD, I/O Shield
– 2 x SATA Data Cables

Hardware Monitor
– CPU temperature sensing
– Chassis temperature sensing
– CPU Fan Tachometer
– Chassis Fan Tachometer
– CPU, Chassis Quiet Fan
– CPU, Chassis Fan multi-speed control
– CASE OPEN detection
– Voltage monitoring: +12V, +5V, +3.3V, Vcore

Form Factor
– Micro ATX Form Factor
– All Solid Capacitor design
– High Density Glass Fabric PCB

OS

– Microsoft® Windows® 10 32-bit / 10 64-bit / 8.1 32-bit / 8.1 64-bit / 8 32-bit / 8 64-bit / 7 32-bit / 7 64-bit
*Carrizo FM2r2 processor supports Windows® 10 64-bit / 8.1 64-bit / 7 32-bit / 7 64-bit only.
