Description
| Category | Specification |
|---|---|
| Unique Features | Superb Productivity – PCIe Gen5 (Graphics & M.2), Dual Channel DDR5, USB4 Type-C (40Gb/s) Rock-Solid Durability – Server-Grade Low-Loss PCB, 24+2+1 Power Phase, 110A SPS, Enlarged Heatsink Armor, Flexible Integrated I/O Shield, 20K Long-Life Black Capacitors Ultrafast Connectivity – 5G LAN, Wi-Fi 7 Module, ASRock Lightning Gaming Ports EZ Update – BIOS Flashback Button, ASRock Auto Driver Installer |
| CPU Support | AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors Supports ASRock Hyper BCLK Engine |
| Chipset | AMD X870E |
| Memory | Dual Channel DDR5 Memory Technology 4 x DDR5 DIMM Slots Supports DDR5 ECC/non-ECC Unbuffered Memory up to 8200+(OC) Maximum Capacity: 256GB Supports XMP and EXPO Memory Profiles |
| BIOS | 256Mb AMI UEFI Legal BIOS with GUI Support |
| Graphics | Integrated AMD RDNA™ Graphics (CPU Dependent) 1 x HDMI 2.1 (4K @ 120Hz, HDR, HDCP 2.3) 2 x USB4 Type-C Display Outputs (Up to 8K @ 30Hz) |
| Audio | 5.1 Channel HD Audio (Realtek ALC4082 Codec) ESS SABRE9219 DAC (130dB SNR) WIMA Audio Capacitors Direct Drive Headphone Amplifier (Up to 600Ω) Nahimic Audio |
| LAN | Realtek RTL8126 5 Gigabit LAN 10/100/1000/2500/5000 Mb/s Support |
| Wireless LAN | Wi-Fi 7 (802.11be) 2×2 Module Supports 2.4GHz / 5GHz / 6GHz Bands Bluetooth 5.4 MU-MIMO Technology |
| Expansion Slots | 2 x PCIe 5.0 x16 Slots (x16 / x8+x8 Modes) 1 x Vertical M.2 Key-E Slot for WiFi/Bluetooth Module Supports AMD CrossFire™ |
| Storage | 1 x Blazing M.2 PCIe Gen5x4 (2280) 3 x Hyper M.2 PCIe Gen4x4 (2280) 6 x SATA3 6Gb/s Ports NVMe SSD Boot Support |
| RAID | SATA RAID 0 / 1 / 10 NVMe RAID 0 / 1 / 10 |
| USB Ports | Rear: 2 x USB4 Type-C, 5 x USB 3.2 Gen2 Type-A, 3 x USB 3.2 Gen1 Type-A, 2 x USB 2.0 Front: 1 x USB 3.2 Gen2x2 Type-C, 4 x USB 3.2 Gen1 Type-A, 4 x USB 2.0 |
| Internal Connectors | 3 x Thermistor Headers 1 x Power LED & Speaker Header 1 x RGB Header 3 x Addressable RGB Headers 2 x CPU Fan Headers 4 x Chassis Fan Headers 1 x AIO Pump Header 1 x Water Pump Header 1 x 24-pin ATX Power Connector 2 x 8-pin CPU Power Connectors 1 x Front Audio Header (Gold-Plated) 2 x USB 2.0 Headers 2 x USB 3.2 Gen1 Headers 1 x USB 3.2 Gen2x2 Front Type-C Header 1 x Dr. Debug LED 1 x Power Button with LED 1 x Reset Button with LED |

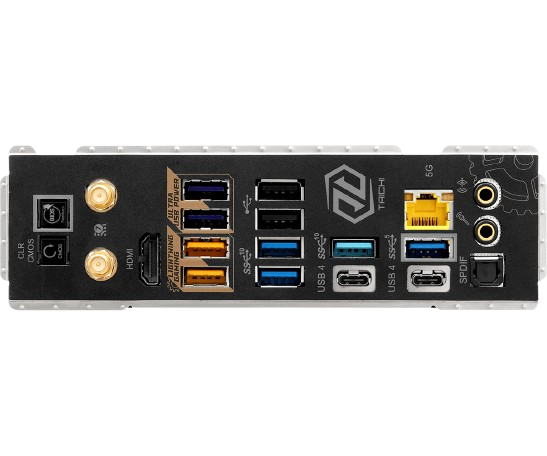

| Rear I/O Ports | 2 x Antenna Ports 1 x HDMI Port 1 x Optical SPDIF Out 2 x USB4 Type-C (40Gb/s) 5 x USB 3.2 Gen2 Type-A (10Gb/s) 3 x USB 3.2 Gen1 Type-A 2 x USB 2.0 Ports 1 x RJ-45 5G LAN Port 1 x Clear CMOS Button 1 x BIOS Flashback Button 1 x Gold Audio Line-Out Jack 1 x Gold Audio Microphone Jack |
| Software | ASRock Motherboard Utility (A-Tuning) ASRock Polychrome SYNC |
| UEFI Features | ASRock EZ Mode ASRock Full HD UEFI ASRock Auto Driver Installer ASRock Instant Flash |
| Accessories | 4 x SATA Data Cables 1 x ASRock WiFi Antenna 1 x ARGB Splitter Cable 3 x Thermistor Cables |
| Form Factor | EATX Form Factor (30.5 cm x 26.7 cm) 8-Layer PCB 2oz Copper PCB |
| Operating System | Windows 10 64-bit / Windows 11 64-bit |
| Certifications | FCC, CE ErP/EuP Ready |
