Description
| Category | Specification |
|---|---|
| Unique Features | PCIe Gen5 (Graphics) Dual Channel DDR5 6+1+1 Power Phase Design ASRock Intel 4-Layer Memory POOL Technology 2.5G LAN 802.11ac Wi-Fi Module ASRock Auto Driver Installer |
| CPU Support | Supports 14th, 13th & 12th Gen Intel® Core™ Processors LGA1700 Socket Intel® Hybrid Technology Intel® Turbo Boost Max 3.0 Technology |
| Chipset | Intel® H610 |
| Memory | Dual Channel DDR5 Memory Technology 2 x DDR5 DIMM Slots Up to DDR5-5600 (14th/13th Gen CPUs) Up to DDR5-4800 (12th Gen CPUs) Maximum Capacity: 128GB Supports Intel® XMP 3.0 |
| BIOS | 128Mb AMI UEFI Legal BIOS with GUI Support |
| Graphics | Intel® Xe Graphics Architecture (Gen 12) 1 x HDMI 2.1 (4K @ 60Hz) 1 x D-Sub (1920×1080 @ 60Hz) |
| Audio | Realtek ALC897 Audio Codec 7.1 Channel HD Audio |
| LAN | Dragon RTL8125BG 2.5 Gigabit LAN 10/100/1000/2500 Mb/s Dragon 2.5G LAN Software Support |
| Wireless LAN | 802.11ac Wi-Fi Module Dual-Band 2.4GHz / 5GHz Up to 433 Mbps Bluetooth 5.0 |
| Expansion Slots | 1 x PCIe 5.0 x16 Slot 1 x PCIe 3.0 x1 Slot 1 x M.2 Key-E Slot for Wi-Fi Module |
| Storage | 1 x Ultra M.2 PCIe Gen3 x4 (2280) 4 x SATA3 6.0 Gb/s Ports NVMe SSD Boot Support |
| USB Ports | 4 x USB 3.2 Gen1 Type-A 6 x USB 2.0 Ports |
| Internal Connectors | 1 x SPI TPM Header 1 x Chassis Intrusion & Speaker Header 1 x CPU Fan Header (4-pin) 1 x Chassis/Water Pump Fan Header (4-pin) 1 x 24-pin ATX Power Connector 1 x 8-pin CPU Power Connector 1 x Front Panel Audio Header 1 x USB 2.0 Header 1 x USB 3.2 Gen1 Header |

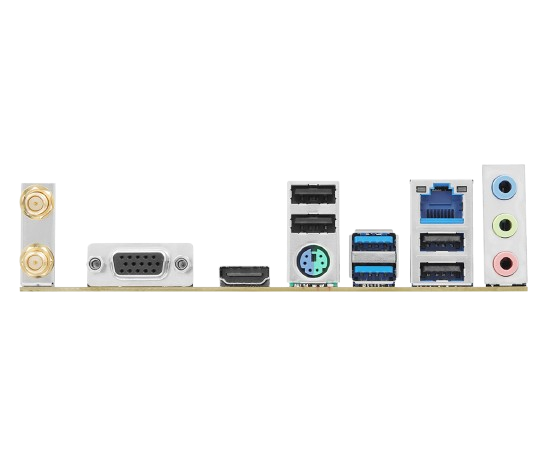

| Rear I/O Ports | 2 x Wi-Fi Antenna Ports 1 x PS/2 Mouse/Keyboard Port 1 x D-Sub Port 1 x HDMI Port 2 x USB 3.2 Gen1 Type-A Ports 4 x USB 2.0 Ports 1 x RJ-45 LAN Port 3 x Audio Jacks (Line In / Front Speaker / Microphone) |
| Software | ASRock Motherboard Utility (A-Tuning) ASRock Dragon 2.5G LAN Software |
| UEFI Features | ASRock EZ Mode Full HD UEFI My Favorites in UEFI Auto Driver Installer Instant Flash |

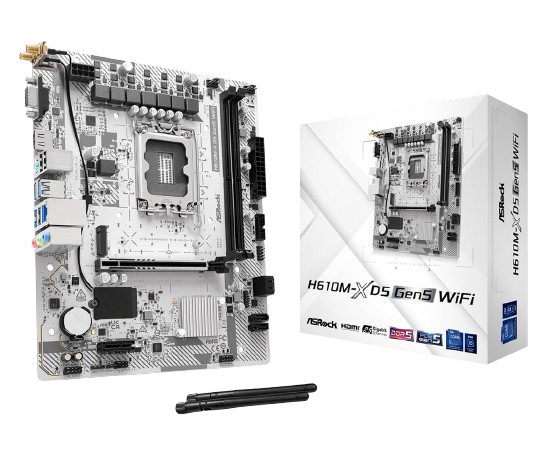

| Accessories | 1 x I/O Shield 2 x SATA Data Cables 2 x ASRock Wi-Fi Antennas 1 x M.2 Screw |
| Form Factor | Micro ATX 24.4 cm x 19.3 cm (9.6″ x 7.6″) Solid Capacitor Design |
| Operating System | Microsoft Windows® 10 64-bit Microsoft Windows® 11 64-bit |
| Certifications | FCC CE ErP/EuP Ready |
