Description
| Category | Specification |
|---|---|
| Unique Features | PCIe Gen5 (Graphics, M.2) Dual Channel DDR5 USB4 Type-C Ports (40 Gb/s) 18+2+1 Power Phase, 80A SPS for Vcore+SOC Enlarged Heatsink Armor Flexible Integrated I/O Shield 20K Long-lasting Black Caps Marvell (Aquantia) 10GbE LAN 5G LAN Wi-Fi 7 Module BIOS Flashback Button ASRock Auto Driver Installer |
| CPU Support | AMD Socket AM5 Ryzen 9000 / 8000 / 7000 Series Processors |
| Chipset | AMD X870 |
| Memory | Dual Channel DDR5 4 x DDR5 DIMM Slots DDR5 ECC / non-ECC Unbuffered Up to DDR5-8000+ (OC) Maximum Capacity: 256GB XMP & EXPO Support |
| BIOS | 512Mb AMI UEFI Legal BIOS with GUI Support |
| Graphics Output | 1 x HDMI 2.1 (4K @ 120Hz) 2 x USB4 Type-C (up to 8K @ 30Hz) |
| Audio | Realtek ALC4082 Codec 7.1 Channel HD Audio Nahimic Audio |
| LAN | 1 x 10GbE LAN (Marvell AQC113) 1 x 5GbE LAN (Realtek RTL8126) Wake-On-LAN & PXE Support |
| Wireless | Wi-Fi 7 (802.11be) 2×2 Antenna Design Bluetooth 5.4 MU-MIMO |
| Expansion Slots | 2 x PCIe 5.0 x16 Slots (x16 / x8+x8) 1 x PCIe 3.0 x16 Slot (x4) 1 x M.2 Key-E Wi-Fi Slot AMD CrossFire Support |
| Storage | 2 x M.2 PCIe Gen5 x4 (2280) 1 x M.2 PCIe Gen4 x4 (2280) 1 x M.2 PCIe Gen3 x4 (2280) 4 x SATA 6Gb/s Ports |
| RAID | RAID 0 / 1 / 10 for M.2 NVMe SSDs |
| USB Ports | Rear: 2 x USB4 Type-C (40Gb/s) 2 x USB 3.2 Gen2 Type-A 6 x USB 3.2 Gen1 Type-A 2 x USB 2.0 Front: |
| Internal Connectors | 1 x Thermistor Header 1 x RGB Header 3 x Addressable RGB Headers 2 x CPU Fan Headers 4 x Chassis Fan Headers 1 x AIO Pump Header 24-pin ATX Power 2 x 8-pin CPU Power Front Audio Header 3 x USB 2.0 Headers 2 x USB 3.2 Gen1 Headers Front USB 3.2 Gen2x2 Type-C Header Dr. Debug LED Power & Reset Buttons |

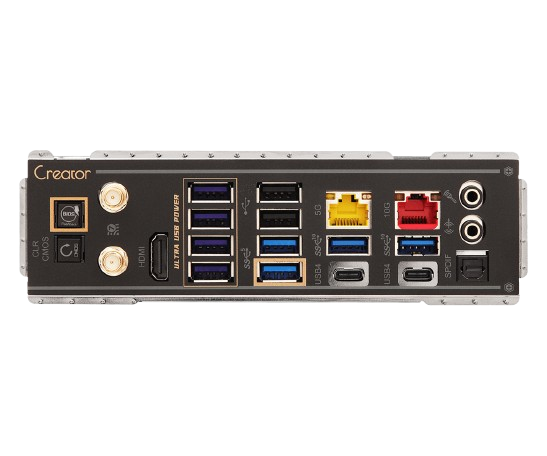

| Rear I/O | 2 x Wi-Fi Antenna Ports 1 x HDMI 1 x Optical SPDIF Out 2 x USB4 Type-C 2 x USB 3.2 Gen2 Type-A 6 x USB 3.2 Gen1 Type-A 2 x USB 2.0 2 x RJ-45 LAN Ports Clear CMOS Button BIOS Flashback Button Line Out & Mic In |
| Software | ASRock A-Tuning ASRock Polychrome SYNC |
| UEFI Features | EZ Mode Full HD UEFI Auto Driver Installer Instant Flash |

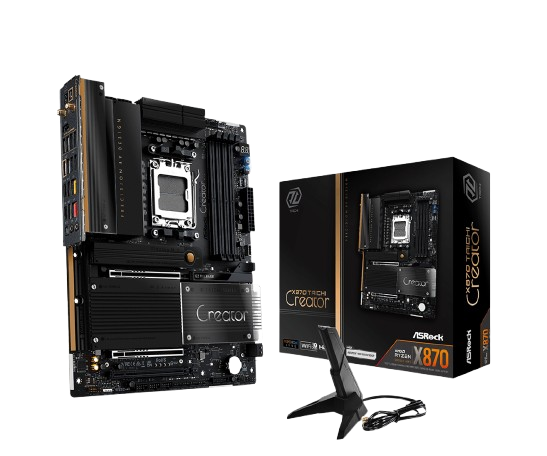

| Accessories | 4 x SATA Cables Wi-Fi Antenna ARGB Splitter Cable Thermistor Cable |
| Form Factor | ATX 30.5 cm x 24.4 cm 8-Layer PCB |
| Operating System | Windows 10 64-bit Windows 11 64-bit |
| Certifications | FCC CE ErP/EuP Ready CEC Tier II Ready |
