Description

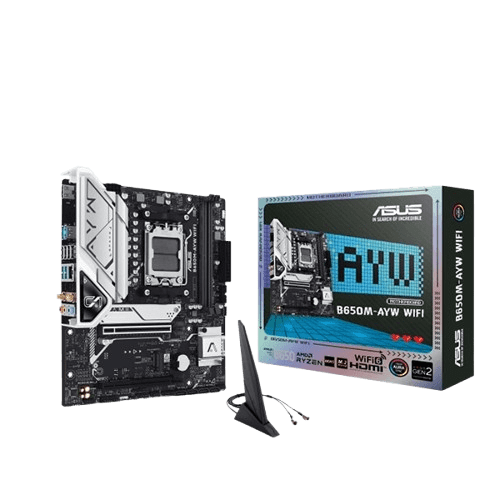

| ASUS B650M-AYW WIFI Motherboard Specifications | |
|---|---|
| Model | B650M-AYW WIFI |
| Ready for Advanced AI PC | Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications |
| CPU | AMD Socket AM5 for Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors *Refer to CPU Support List |
| Chipset | AMD B650 Chipset |
| Memory | 2 x DIMM slots, max. 96GB, DDR5 up to 8000+MT/s (OC) Supports ECC & Non-ECC Un-buffered DIMM Dual Channel Memory Architecture Supports AMD EXPO™ ASUS OptiMem II |
| Graphics | 1 x HDMI™ port (4K@60Hz, HDMI 2.1) *Graphics specs depend on CPU |
| Expansion Slots | Ryzen™ 9000 & 7000: 1 x PCIe 4.0 x16 (x16 mode) Ryzen™ 8000: 1 x PCIe 4.0 x16 (x8/x4 mode) B650 Chipset: 1 x PCIe 4.0 x16 (x4 mode) *Refer to PCIe bifurcation table |
| Storage | Supports 2 x M.2 slots + 4 x SATA 6Gb/s ports
Ryzen™ 9000 & 7000: Ryzen™ 8000: B650 Chipset: 4 x SATA 6Gb/s ports *AMD RAIDXpert2 Technology supports PCIe RAID 0/1/10 and SATA RAID 0/1/10 |
| Ethernet | 1 x Realtek 2.5Gb Ethernet |
| Wireless & Bluetooth | Wi-Fi 6 (802.11 a/b/g/n/ac/ax), dual band (2.4/5GHz) Bluetooth® v5.3* |
| Connectivity | PCIe 5.0 M.2 slot, Realtek 2.5Gb Ethernet, Wi-Fi 6 Rear USB 10Gbps ports, Front USB 5Gbps Type-C® |
| Cooling | VRM heatsink, M.2 heatsink, PCH heatsink, hybrid fan headers, Fan Xpert 2+ |
| RGB Lighting | Aura Sync RGB Lighting with onboard Gen 2 headers & RGB LED strip support |
| News & Updates | Please visit ASUS Global Support for latest updates |
