| Model Name |

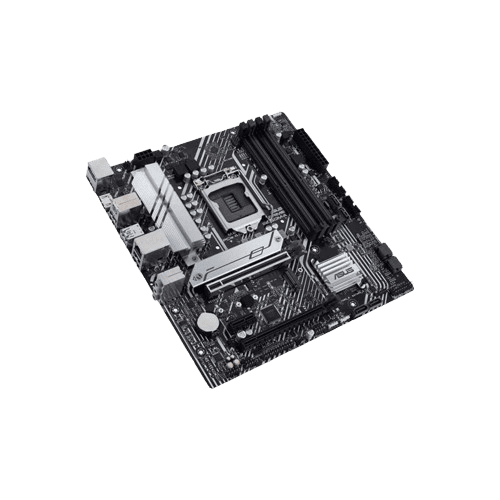

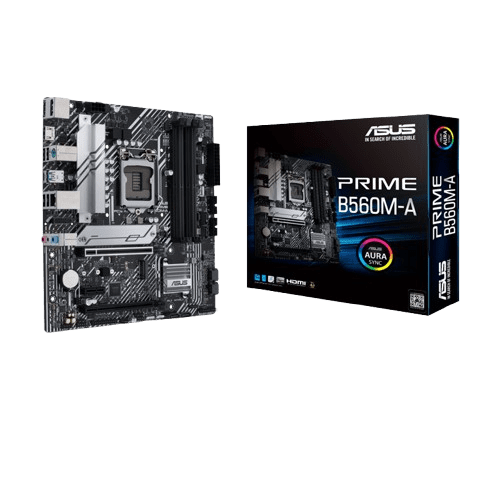

ASUS PRIME B560M-A |
| Warranty |
3-Year Standard Warranty |
| Form Factor |
Micro-ATX (24.4 cm x 23.4 cm) |
| CPU Socket |
LGA 1200 |
| Supported CPUs |
Intel 10th and 11th Gen Core™ i9/i7/i5/i3, Pentium Gold, Celeron |
| Chipset |
Intel® B560 |
| Memory Support |
4 x DDR4 DIMM slots, Dual-Channel Architecture, Up to 128 GB Total |
| Memory Speeds (OC) |
2133, 2400, 2666, 2800, 2933, 3000, 3200, 3333, 3400, 3466, 3600, 3733, 3866, 4000, 4133, 4266, 4400, 4500, 4600, 4700, 4800 MT/s |
| Graphics Interface |
Integrated Graphics Processor (Depends on CPU) |
| Audio Codec |
Realtek® ALC887/ALC897, 7.1-Channel High Definition Audio |
| SATA Ports |
6 x SATA 6Gb/s Ports |
| M.2 Slots |
2 x M.2 Slots |
| M.2_1 Slot |
Type 2242/2260/2280 (PCIe 4.0 x4, Only with 11th Gen CPUs) |
| M.2_2 Slot |
Type 2242/2260/2280 (PCIe 3.0 x4 & SATA Modes) |
| PCIe Slots |
1 x PCIe 4.0/3.0 x16 Slot (x16 Mode) |
| Additional PCIe Slots |
1 x PCIe 3.0 x16 Slot (x4 Mode), 1 x PCIe 3.0 x1 Slot |
| USB Ports (Rear I/O) |
1 x USB 3.2 Gen 2 Type-C®, 1 x USB 3.2 Gen 2 Type-A, 2 x USB 3.2 Gen 1 Type-A, 2 x USB 2.0 Type-A |
| Video Outputs |
1 x DisplayPort, 2 x HDMI |
| Ethernet |
1 x Intel® I219-V Gigabit Ethernet |
| Wi-Fi |
V-M.2 Slot (Key E) for Wi-Fi Module |
| Audio Jacks |
3 x 3.5mm Audio Jacks |
| PS/2 Combo Port |
1 x PS/2 Combo Port |
| Expansion Slots |
1 x PCIe 4.0/3.0 x16 Slot, 1 x PCIe 3.0 x16 Slot (x4 Mode), 1 x PCIe 3.0 x1 Slot |
| Cooling Features |
VRM Heatsink, Flexible M.2 Heatsink, PCH Heatsink, Hybrid Fan Headers, Fan Xpert 2+ |
| RGB Lighting |
Aura Sync RGB Header, Addressable Gen 2 Header |
| Power Connectors |
1 x 24-pin ATX Power Connector, 1 x 8-pin ATX 12V Power Connector |
| BIOS |
128Mb Flash ROM, UEFI AMI BIOS |
| Operating System Support |
Windows 10 64-bit, Windows 11 64-bit |
| Dimensions |
24.4 cm x 23.4 cm |
| Package Contents |
Motherboard, I/O Shield, SATA Cables, Wi-Fi Antenna (Optional), User Manual |
