Description

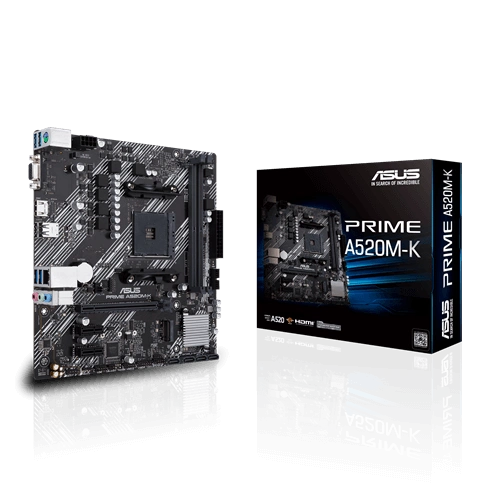

| Model | ASUS PRIME A520M-K |
|---|---|
| CPU | AMD AM4 Socket Supports AMD Ryzen™ 5000 / 5000 G / 4000 G / 3000 / 3000 G Series Desktop Processors *Refer to www.asus.com for full CPU support list |
| Chipset | AMD A520 |
| Memory | 2 x DIMM Slots (Max 64GB) DDR4 5100(O.C)/4866(O.C)/4666(O.C)/4600(O.C)/4466(O.C)/4400(O.C)/4333(O.C)/4266(O.C)/4200(O.C)/4133(O.C)/4000(O.C)/3866(O.C)/3733(O.C)/3600(O.C)/3466(O.C)/3400(O.C)/3333(O.C)/3200/3000/2933/2800/2666/2400/2133 MHz Dual Channel Architecture Un-buffered Memory ECC Support (Varies by CPU) *Refer to ASUS Memory QVL |
| Graphics Output | 1 x D-Sub (VGA) 1 x HDMI 2.1 (4K @ 60Hz) |
| Expansion Slots | 1 x PCIe 3.0 x16 (x16 mode) 2 x PCIe 3.0 x1 |
| Storage | 1 x M.2 Socket 3 (M-Key, 2242/2260/2280) Supports PCIe 3.0 x4 & SATA Modes 4 x SATA 6Gb/s Ports RAID Support: 0 / 1 / 10 |
| LAN | Realtek RTL8111H 1Gb Ethernet ASUS LANGuard Protection |
| Audio | Realtek ALC887/897 7.1 HD Audio CODEC Supports Jack-detection & Multi-streaming Up to 24-bit/192kHz Playback Audio Shielding & Dedicated PCB Layers *Requires HD audio chassis for 8-channel output |
| USB Ports | Rear: – 4 x USB 3.2 Gen 1 (Type-A) – 2 x USB 2.0 (Type-A)Front Support: – 1 x USB 3.2 Gen 1 Header (2 Ports) – 2 x USB 2.0 Headers (4 Ports) |
| Back I/O Ports | 4 x USB 3.2 Gen 1 Type-A 2 x USB 2.0 1 x PS/2 Combo Port 1 x D-Sub 1 x HDMI 1 x RJ45 LAN 3 x Audio Jacks |
| Internal I/O | 1 x M.2 Socket 3 4 x SATA 6Gb/s 1 x 24-pin ATX Power 1 x 8-pin CPU Power 1 x CPU Fan Header 1 x Chassis Fan Header 2 x USB 2.0 Headers 1 x USB 3.2 Gen 1 Header 1 x Front Panel Audio (AAFP) 1 x SPI TPM Header 1 x S/PDIF Out Header 1 x Clear CMOS Jumper 1 x System Panel Connector 1 x COM Header 1 x Speaker Connector |
| Software | Armoury Crate AI Suite 3 (TurboV EVO, EPU, Digi+ VRM, Fan Xpert) ASUS CPU-Z AI Charger Norton Anti-virus (60 Days Trial) WinRAR DAEMON Tools |
| Special Features | ASUS 5X Protection III DIGI+ VRM Overvoltage Protection SafeSlot Core Stainless-Steel Back I/O ASUS Q-DIMM & Q-Slot Aluminum Heatsink Design |
| BIOS | 256Mb Flash ROM UEFI AMI BIOS ASUS EZ Flash 3 CrashFree BIOS 3 |
| Manageability | WOL by PME, PXE |
| Operating System | Windows® 10 64-bit |
| Form Factor | mATX 8.9 inch x 8.7 inch (22.6 cm x 22.1 cm) |
| Accessories | M.2 SSD Screw Package 2 x SATA Cables I/O Shield User Manual Supporting DVD |
