| Specification |
Details |
| Model |
PRIME B550M-A WIFI II |
| CPU Support |
AMD Ryzen™ 5000 Series / 5000 G-Series / 4000 G-Series / 3000 Series Desktop Processors |
| Memory |
4 x DIMM, Max. 128GB, DDR4 |
| Memory Speed |
4866(OC) / 4800(OC) / 4600(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3400(OC) / 3333(OC) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 |
| Memory Architecture |
Dual Channel Memory Architecture |
| Memory Type |
Un-buffered Memory |
| ECC Support |
ECC memory support varies by CPU |
| Graphics Outputs |
1 x D-Sub, 1 x DVI-D, 1 x HDMI® |
| HDMI Support |
Up to 4K @ 60Hz |
| Expansion Slots |
1 x PCIe 4.0 x16 (Ryzen 5000/3000); 1 x PCIe 3.0 x16 (Ryzen 5000 G/4000 G); 2 x PCIe 3.0 x1 |
| M.2 Slots |
2 x M.2 Key M |
| M.2_1 Support |
PCIe 4.0 x4 & SATA modes (Ryzen 5000/3000); PCIe 3.0 x4 & SATA modes (Ryzen 4000 G) |
| M.2_2 Support |
PCIe 3.0 x4 & SATA modes |
| M.2 Sizes |
2242 / 2260 / 2280 / 22110 (M.2_1); 2242 / 2260 / 2280 (M.2_2) |
| SATA |
4 x SATA 6Gb/s |
| RAID Support |
RAID 0, 1, 10 |
| Ethernet |
1 x Realtek 1Gb Ethernet |
| LAN Protection |
ASUS LANGuard |
| Wi-Fi |
Wi-Fi 6, 2×2 802.11 a/b/g/n/ac/ax, 2.4GHz / 5GHz |
| Bluetooth |
Bluetooth 5.2 |
| Rear USB |
2 x USB 3.2 Gen 2 Type-A, 4 x USB 3.2 Gen 1 Type-A |
| Front USB |
1 x USB 3.2 Gen 1 header + 2 x USB 2.0 headers |
| Audio Codec |
Realtek 7.1 Surround Sound High Definition Audio CODEC |
| Audio Support |
Up to 24-Bit / 192 kHz playback |
| Audio Features |
Audio Shielding, LED-illuminated audio trace path, Premium audio capacitors |

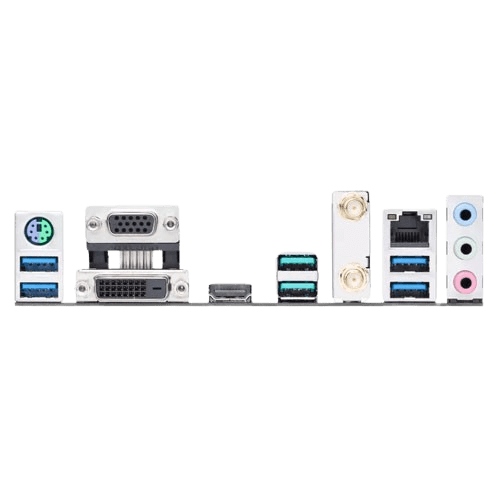

| Back Panel I/O |
2 x USB 3.2 Gen 2, 4 x USB 3.2 Gen 1, D-Sub, DVI-D, HDMI®, Wi-Fi Module, 1Gb Ethernet, 3 x Audio Jacks, PS/2 |
| CPU Fan Headers |
1 x 4-pin CPU Fan, 1 x 4-pin CPU OPT Fan |
| Chassis Fan Headers |
2 x 4-pin Chassis Fan |
| Power Connectors |
1 x 24-pin Main Power, 1 x 8-pin +12V |
| RGB Headers |
1 x Addressable Gen 2, 2 x AURA RGB |
| Special Features |
ASUS 5X PROTECTION III, ASUS Q-Design, ASUS Thermal Solution, AURA Sync |
| Protection Features |
DIGI+ VRM, LANGuard, Overvoltage Protection, SafeSlot Core, Stainless-Steel Back I/O |
| Software |
Armoury Crate, AURA Creator, AURA Sync, AI Suite 3, TurboV EVO, EPU, DIGI+ VRM, Fan Xpert 2+, MyASUS, ASUS CPU-Z, AI Charger |
| BIOS |
256 Mb Flash ROM, UEFI AMI BIOS |
| BIOS Features |
ASUS CrashFree BIOS 3, ASUS EZ Flash 3, ASUS UEFI BIOS EZ Mode |
| Manageability |
WOL by PME, PXE |
| Accessories |
2 x SATA 6Gb/s cables, ASUS Wi-Fi moving antennas, I/O Shield, M.2 SSD screw package, Support DVD, User Manual |
| Operating System |
Windows® 11 / Windows® 10 64-bit |
| Form Factor |
microATX |
| Dimensions |
24.4 cm x 24.4 cm |
