Description :

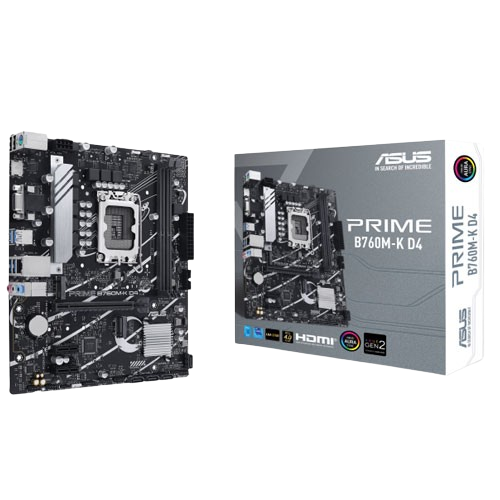

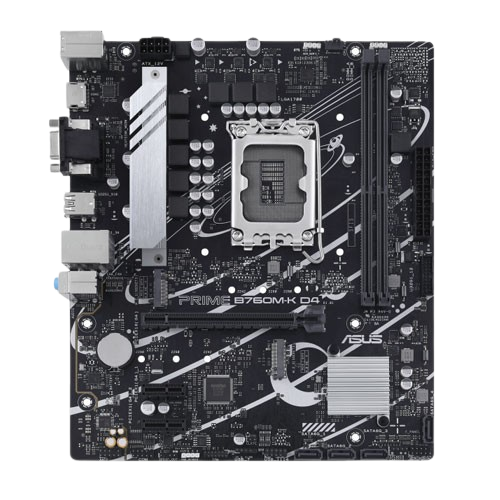

| Model | PRIME B760M-K D4 | |
| CPU | Intel® Socket LGA1700 for 13th Gen Intel® Core™ Processors & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors* | |
| Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** | ||
| * Refer to www.asus.com for CPU support list. | ||
| ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types. | ||
| Chipset | Intel® B760 Chipset | |
| Memory | 2 x DIMM, Max. 64GB, DDR4 | |
| 5333(OC)/5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory* | ||
| Dual Channel Memory Architecture | ||
| Supports Intel® Extreme Memory Profile (XMP) | ||
| * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/. | ||
| Graphics | 1 x VGA port | |
| 1 x HDMI® port** | ||
| * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. | ||
| ** Supports 4K@60Hz as specified in HDMI® 2.1. | ||
| Expansion Slots | Intel® 13th & 12th Gen Processors | |
| 1 x PCIe 4.0 x16 slot | ||
| Intel® B760 Chipset | ||
| 2 x PCIe 4.0 x1 slots | ||
| Note: To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals. | ||
| Storage | Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports* | |
| Intel® 13th & 12th Gen Processors | ||
| M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) | ||
| Intel® B760 Chipset | ||
| M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) | ||
| 4 x SATA 6Gb/s ports | ||
| * Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10. | ||
| Ethernet | 1 x Realtek 2.5Gb Ethernet | |
| USB | Rear USB (Total 6 ports) | |
| 4 x USB 3.2 Gen 1 ports (4 x Type-A) | ||
| 2 x USB 2.0 ports (2 x Type-A? | ||
| Front USB (Total 5 ports) | ||
| 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports | ||
| 2 x USB 2.0 headers support 3 additional USB 2.0 ports | ||
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC* | |
| – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking | ||
| – Supports up to 24-Bit/192 kHz playback | ||
| Audio Features | ||
| – Audio Shielding | ||
| – Premium audio capacitors | ||
| – Dedicated audio PCB layers | ||
| * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. | ||

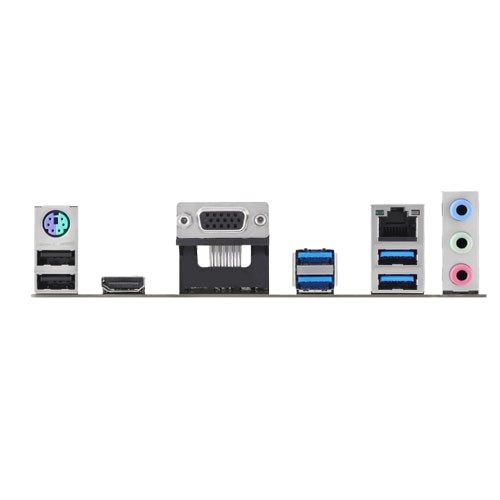

| Back Panel I/O Ports | 4 x USB 3.2 Gen 1 ports (4 x Type-A) | |
| 2 x USB 2.0 ports (2 x Type-A) | ||
| 1 x VGA port | ||
| 1 x HDMI® port | ||
| 1 x Realtek 2.5Gb Ethernet port | ||
| 3 x Audio jacks | ||
| 1 x PS/2 Keyboard/Mouse combo port | ||
| Internal I/O Connectors | Fan and Cooling related | |
| 1 x 4-pin CPU Fan header | ||
| 1 x 4-pin Chassis Fan header | ||
| Power related | ||
| 1 x 24-pin Main Power connector | ||
| 1 x 8-pin +12V Power connector | ||
| Storage related | ||
| 2 x M.2 slots (Key M) | ||
| 4 x SATA 6Gb/s ports | ||
| USB | ||
| 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports | ||
| 2 x USB 2.0 headers support 3 additional USB 2.0 ports | ||
| Miscellaneous | ||
| 2 x Addressable Gen 2 headers | ||
| 1 x Aura RGB header | ||
| 1 x Clear CMOS header | ||
| 1 x COM Port header | ||
| 1 x Front Panel Audio header (AAFP) | ||
| 1 x S/PDIF Out header | ||
| 1 x Speaker header | ||
| 1 x SPI TPM header (14-1pin) | ||
| 1 x 10-1 pin System Panel header | ||
| Special Features | ASUS 5X PROTECTION III | |
| – DIGI+ VRM | ||
| – LANGuard | ||
| – Overvoltage Protection | ||
| – SafeSlot Core | ||
| – Stainless-Steel Back I/O | ||
| ASUS Q-Design | ||
| – Q-DIMM | ||
| – Q-LED Core | ||
| – Q-Slot | ||
| ASUS EZ DIY | ||
| – ProCool | ||
| ASUS Thermal Solution | ||
| – VRM heatsink design | ||
| Aura Sync | ||
| – Aura RGB header | ||
| – Addressable Gen 2 headers | ||
| Software Features | ASUS Exclusive Software | |
| Armoury Crate | ||
| – Aura Sync | ||
| – Fan Xpert | ||
| – Power Saving | ||
| AI Suite 3 | ||
| – DIGI+ VRM | ||
| – PC Cleaner | ||
| ASUS CPU-Z | ||
| Norton 360 Deluxe (60 Days Free Trial) | ||
| WinRAR | ||
| UEFI BIOS | ||
| ASUS EZ DIY | ||
| – ASUS CrashFree BIOS 3 | ||
| – ASUS EZ Flash 3 | ||
| – ASUS UEFI BIOS EZ Mode | ||
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS | |
| Manageability | ||
| WOL by PME, PXE | ||
| Accessories | Cables | |
| 2 x SATA 6Gb/s cables | ||
| Miscellaneous | ||
| 1 x I/O Shield | ||
| 2 x M.2 anchors | ||
| Documentation | ||
| 1 x User guide | ||
| Operating System | Windows® 11, Windows® 10 64-bit | |
| Form Factor | mATX Form Factor | |
| 9.6 inch x 8.3 inch (24.4cm x 21.1cm) | ||
