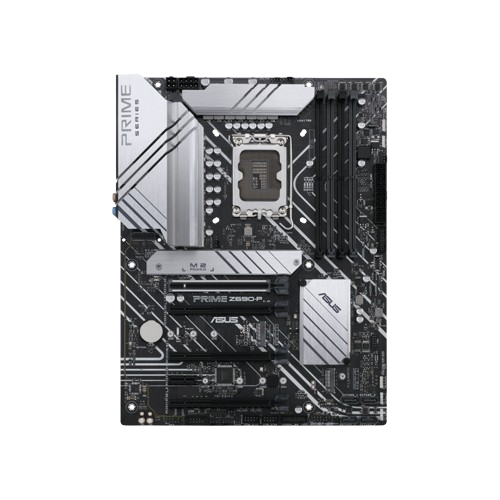

Description
| Category | Details |
|---|---|
| CPU | Intel® Socket LGA1700 for 12th Gen Intel® Core™, Pentium® Gold, and Celeron® Processors |
| Chipset | Z690 |
| Memory | 4 x DIMM, Max. 128GB, DDR5 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800 |
| Graphics | 1 x DisplayPort (4K@60Hz), 1 x HDMI (4K@60Hz) |
| Expansion Slots | 1 x PCIe 5.0 x16, 1 x PCIe 4.0 x16, 2 x PCIe 3.0 x16, 1 x PCIe 3.0 x1 |
| Storage | 3 x M.2 slots, 4 x SATA 6Gb/s ports |
| Ethernet | Realtek 2.5Gb Ethernet |
| Wireless & Bluetooth | Intel® Wi-Fi 6, Bluetooth v5.2 |
| USB (Rear) | 1 x USB 3.2 Gen 2×2 Type-C, 1 x USB 3.2 Gen 2 Type-A, 2 x USB 3.2 Gen 1 Type-A, 2 x USB 2.0 Type-A |
| USB (Front) | 1 x USB 3.2 Gen 1 Type-C, 4 x USB 3.2 Gen 1, 4 x USB 2.0 |
| Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC |
| Back Panel I/O | USB ports, DisplayPort, HDMI, Wi-Fi module, Ethernet, Audio jacks, Optical S/PDIF, PS/2 |
| Internal I/O | Fan headers, Power connectors, M.2 slots, SATA ports, USB headers, RGB headers |
| Form Factor | ATX (30.5cm x 23.4cm) |
Reviews
There are no reviews yet
