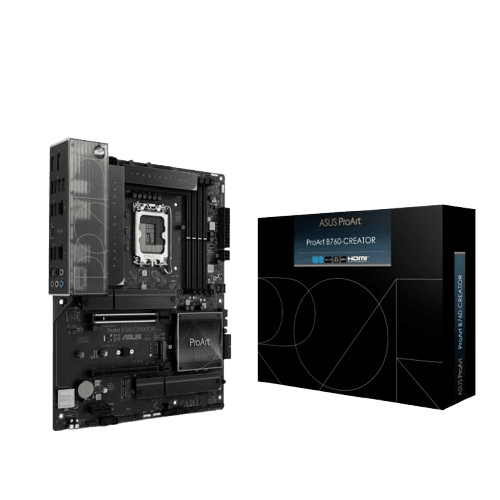

| ASUS ProArt B760-CREATOR Motherboard Specifications | |
|---|---|
| Model | ProArt B760-CREATOR |
| CPU | |
| Socket | Intel® Socket LGA1700 for Intel® Core™ 14th, 13th & 12th Gen, Pentium® Gold, and Celeron® Processors |
| Architecture | Supports Intel® 10 nm CPU |
| Technologies | Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** |
| Notes | * Refer to www.asus.com for CPU support list. ** Intel® Turbo Boost Max Technology 3.0 support depends on CPU type. |
| Chipset | |
| Chipset | Intel® B760 Chipset |
| Memory | |
| Slots | 4 x DIMM |
| Capacity | Max. 192GB DDR5 Non-ECC, Un-buffered Memory |
| Architecture | Dual Channel Memory Architecture |
| Features | Supports Intel® XMP and OptiMem II |
| Notes | * Supported memory types, data rate (speed), and DRAM modules vary depending on CPU and memory configuration. Visit ASUS Support for details. |
| Graphics | |
| Ports | 1 x HDMI™ port (4K@60Hz, HDMI 2.1) 1 x DisplayPort port (8K@60Hz, DP 1.4) |
| Notes | * Graphics specs vary between CPU types. Refer to www.intel.com for updates. |
| Expansion Slots | |
| CPU PCIe | 1 x PCIe 5.0/4.0/3.0 x16 slot |
| Chipset PCIe | 1 x PCIe 4.0 x16 slot (x4 mode) 1 x PCIe 3.0 x1 slot |
| Notes | ** PCIe X1 shares bandwidth with M.2_2. PCIe X1 is disabled when M.2_2 runs at PCIe x4 mode. |
| Storage | |
| Slots & Ports | Total 3 x M.2 slots, 4 x SATA 6Gb/s ports |
| Processor PCIe | M.2_1 (Key M, 2242/2260/2280/22110) – PCIe 4.0 x4 (Intel® 13th/12th Gen) |
| Chipset PCIe | M.2_2 (Key M, 2242/2260/2280/22110) – PCIe 3.0 x4 M.2_3 (Key M, 2242/2260/2280/22110) – PCIe 4.0 x4 4 x SATA 6Gb/s ports * Supports Intel® RST (RAID 0/1/5/10) |
| Notes | *** M.2_2 shares bandwidth with PCIe X1 and Wi-Fi Key E. Runs at PCIe 3.0 x2 when either PCIe X1 or Wi-Fi Key E is active. |
| Ethernet | |
| LAN | 1 x Realtek 2.5Gb Ethernet 1 x Intel® 1Gb Ethernet ASUS LANGuard |
| Wireless & Bluetooth | |
| Interface | M.2 slot (Key E, CNVi & PCIe) |
| Notes | *Wi-Fi module sold separately. |
| USB | |
| Rear USB (Total 9 ports) | 1 x USB 3.2 Gen 2 (10G) Type-C® 4 x USB 3.2 Gen 1 (5G) Type-A 4 x USB 2.0 Type-A |
| Front USB (Total 7 ports) | 1 x USB 3.2 Gen 2×2 (20G) connector (Type-C®, 60W PD/QC4+) 1 x USB 3.2 Gen 1 (5G) header (supports 2 x Type-A) 2 x USB 2.0 headers (support 4 x USB 2.0 ports) |
| Audio | |
| Codec | Realtek 7.1 Surround Sound High Definition Audio CODEC |
| Features | – Jack detection, Multi-streaming, Front Panel Jack-retasking – Up to 24-bit / 192 kHz playback – Premium audio capacitors – Dedicated audio PCB layers – Audio cover – Unique de-pop circuit |
