Description
| Specification | Details |
|---|---|

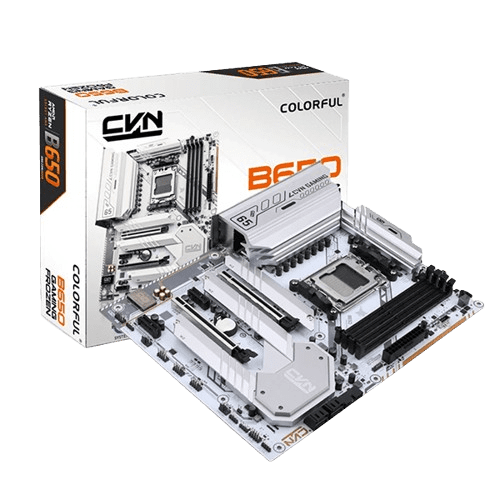

| Model | CVN B650 GAMING FROZEN V14 |
| Product Series | CVN series |
| Chipset | AMD B650 |
| Processor Support | AMD Ryzen 7000 series processors (AM5 socket) |
| Memory | 4× DDR5 slots (up to 192 GB total, 48 GB per slot) Supports DDR5-6200 (OC) to DDR5-4800 MHz Dual-channel technology Extreme Memory Profile (XMP) supported |
| SATA & M.2 Slots | 3× M.2 slots: – M.2_1: 2242/2280/22110 (PCIe 5.0 x4, CPU channel) – M.2_2: 2242/2280 (PCIe 5.0 x4, CPU channel) – M.2_3: 2242/2280 (PCIe 4.0 x4, PCH channel) 4× SATA 6Gb/s ports Supports RAID 0, 1, 10 |
| Rear I/O Ports | – 2× USB 2.0 – 4× USB 3.2 Gen 1 Type-A – 1× USB 3.2 Gen 2 Type-A – 1× USB 3.2 Gen 2 Type-C – 1× DisplayPort 1.2 (4K@60Hz) – 1× HDMI 2.0 (4K@60Hz) – 1× 2.5G LAN port – 2× WiFi 6 antenna connectors – 6× Audio jacks – 1× BIOS update button |
| Onboard Headers | – 2× CPU fan headers – 2× System fan headers – 1× Water cooling pump header – 2× USB 2.0 headers (expandable to 4 ports) – 1× USB 3.2 Gen 1 header (expandable to 2 ports) – 1× USB 3.2 Gen 1 Type-C header – 2× 5V 3-pin ARGB headers – 2× 12V 4-pin RGB headers – 1× Front panel audio header – 1× Front panel header – 1× Speaker header – 1× Clear CMOS jumper – 1× COM port header – 1× BIOS burner header – 1× RGB light effect control jumper |
| Expansion Slots | – 1× PCIe 5.0 x16 slot – 1× PCIe 4.0 x16 slot (x4 mode) – 2× PCIe 4.0 x1 slots |
| BIOS | 128M UEFI BIOS, multilingual support |
| Power Management | S3/S4/S5 wake-up, USB wake-up, scheduled boot, call boot |
| Hardware Monitoring | Controllable CPU/system fan speeds, CPU/system temperature, voltage monitoring |
| LAN & Wireless | RTL8125 2.5Gbit LAN, AX200 WiFi 6, Bluetooth 5.1 |
| Audio | 7.1-Channel High Definition Audio CODEC |
| Form Factor | ATX (305×245 mm) |
