Description

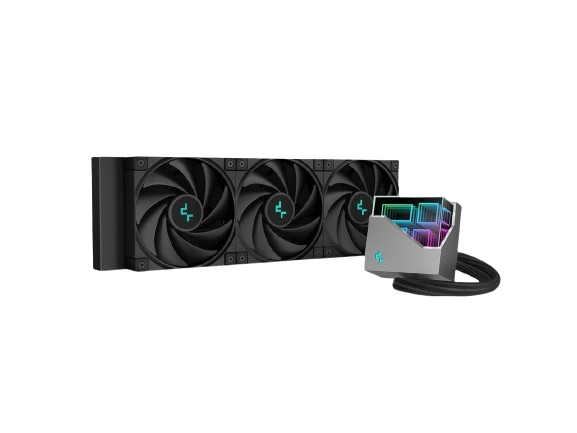

- Break Into a New Dimension: Discover new found heights with liquid CPU cooling built on our 4th gen water pump design that rivals top competition for the cooling performance crown.

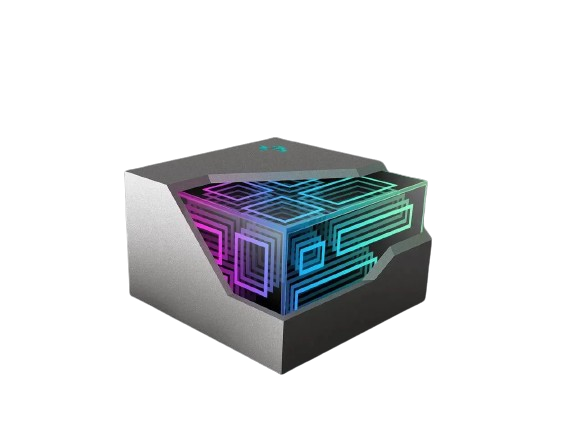

- Infinity Geometric Reflections: A three-dimensional infinity mirror block cover reflects off of multiple surfaces that offers a new visual experience and glows marvelously in millions of colors.
- Extremely Powerful: Maximize your cooling potential with DeepCool FK120 fans that are specially tuned for static pressure on liquid cooling radiators. The highly regarded cooling performance is backed up by its sturdy frame allowing for minimal tip clearance and maximum airflow.
- Synchronize Your Setup: Easily control the 5V Addressable-RGB LEDs on the pump and fans for dynamic visual effects through supported motherboard software.
- Simple and Secure: A newly designed mounting bracket makes it quick and easy to install for both Intel and AMD platforms (e.g., LGA 2066/1700/3600/115x, AMD AM4)
Application For – Intel
LGA2066/2011-v3/2011/1700/1200/1151/1150/1155
AMD – sTRX4/sTR4/AM5/AM4
Technical Spec
| Net Weight | 1856 g |

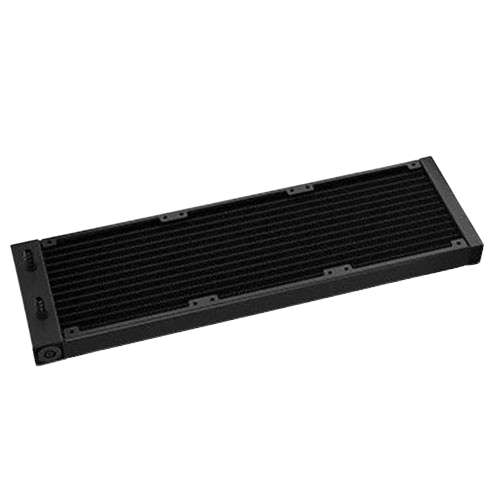

| Radiator Dimensions | 402×120×27 mm |
| Radiator Material | Aluminum |
| Tube length | 410 mm |
| Pump Dimensions | 94×80×68 mm |
| Pump Speed | 3100 RPM±10% |
| Pump Noise | 19 dB(A) |
| Pump Connector | 3-pin |
| Pump Rated Voltage | 12 VDC |
| Pump Rated Current | 0.38 A |
| Pump Power Consumption | 4.56 W |
| Fan Dimensions | 120×120×25 mm |
| Fan Speed | 500~2250 RPM±10% |
| Fan Airflow | 85.85 CFM |
| Fan Air Pressure | 3.27 mmAq |
| Fan Noise | ≤32.9 dB(A) |
| Fan Connector | 4-pin PWM |
| Bearing Type | Fluid Dynamic Bearing |
| Fan Rated Voltage | 12 VDC |
| Fan Rated Current | 0.22 A |
| Fan Power Consumption | 2.64 W |
| LED Type | Addressable RGB LED |
| LED Connector | 3-pin(+5V-D-G) |
| LED Rated Voltage | 5 VDC |
| LED Power Consumption | 3.15 W（PUMP） |
