Description
Description :

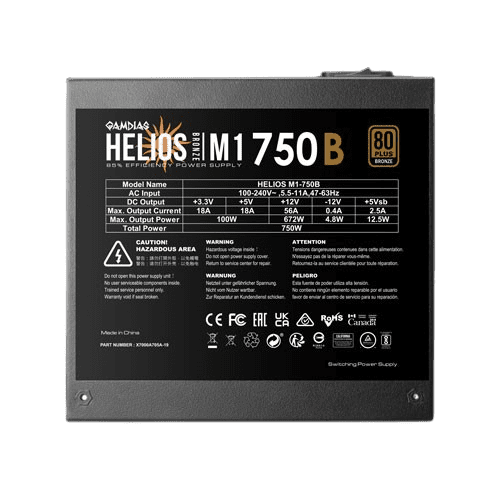

| SPECIFICATIONS | Model | HELIOS M1-750B |
| POWER | Type | ATX12V v2.4 |
| Efficiency | Meet 80 PLUS Bronze efficiency | |
| Power Factor Correction | APFC with PF value of 0.99 | |
| Support MB Sync | No | |
| Dimension | (L x W x H)140 x 150 x 86 mm | |
| Support | C6/C7 power stateYes | |
| AC Input | 100-240V / 5.5-11A / 47-63Hz | |
| DC Output | +3.3V / +5V / +12V / -12V / +5Vsb | |
| Max. Output | Current18A / 18A / 56A / 0.4A / 2.5A | |
| Max. Output | Power100W / 672W / 4.8W / 12.5W | |
| Total Power | 750W | |
| Protection | OVP / UVP / OPP / OCP / SCP | |
| Main Power | 1 (20+4 Pin) | |
| CPU | 1 (4+4 Pin) | |
| PCI-E | 4 (6+2 Pin) | |
| SATA | 5 (5 Pin) | |
| Molex | 3 (4 Pin) | |
| Modular | Non Modular | |
| Flat Cable | Yes | |
| Cooling System | 120mm hydraulic bearing fan | |
| Silent Mode | No |
