Description
Description :
| SPECIFICATIONS | ||

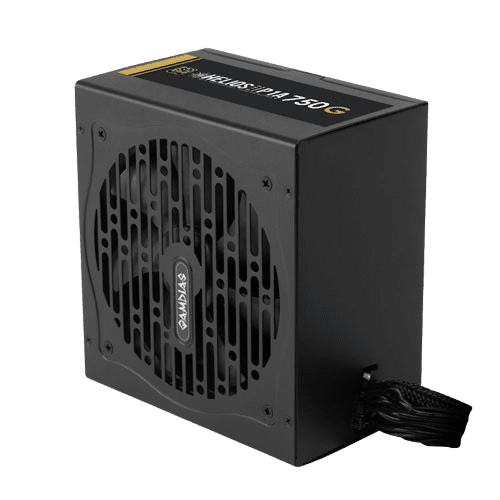

| Model | HELIOS P1A-750G | |
| POWER | ||
| Type | ATX12V v2.52 | |
| Efficiency | Meet 80 PLUS Gold efficiency | |
| Power Factor Correction | APFC with PF value of 0.99 | |
| Support MB Sync | No | |
| Dimension (L x W x H) | 140 x 150 x 86 mm | |
| Support C6/C7 power state | Yes | |
| AC Input | 100-240V~ / 10A / 50-60Hz | |
| DC Output | +3.3V / +5V / +12V / -12V / +5Vsb | |
| Max. Output Current | 22A / 22A / 62.5A / 0.3A / 3A | |
| Max. Output Power | 120W / 750W / 3.6W / 15W | |
| Total Power | 750W | |
| Peak Power | 975W | |
| Protection | OVP / UVP / OPP / SCP / OCP / OTP | |
| Main Power | 1 (24 Pin) | |
| CPU1 | (4+4 Pin) | |
| PCI-E2 | (6+2 Pin) | |
| SATA4 | (5 Pin) | |
| Molex | 3 (4 Pin) | |
| Modular | Non Modular | |
| Flat Cable | Yes | |
| Cooling System | 120mm hydraulic bearing fan | |
| Silent Mode | No | |
| DC to DC | Yes | |
| Environmental Compliance | Erp Lot 6 |
