Description
| Component | Details |
|---|---|
| CPU | AMD Socket AM4 support for: AMD Ryzen 5000 G-Series Processors AMD Ryzen 5000 Series Processors AMD Ryzen 4000 G-Series Processors AMD Ryzen 3000 G-Series Processors AMD Ryzen 3000 Series Processors |
| Chipset | AMD B550 |
| Memory | 2 x DDR4 DIMM sockets, up to 64GB Dual Channel Architecture Memory Speeds: 5100(O.C.) / 4800(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz Support ECC & Non-ECC DIMM XMP Memory Support |
| Onboard Graphics | Integrated AMD Radeon Graphics 1 x DisplayPort (5120×2880 @60Hz) 1 x HDMI 2.1 (4096×2160 @60Hz) Max Shared Memory: 16GB |
| Audio | Realtek High Definition Audio CODEC 2 / 4 / 5.1 / 7.1 Channel Audio |
| LAN | Realtek GbE LAN (10/100/1000 Mbps) |
| Expansion Slots | 1 x PCIe x16 Slot PCIe 4.0 (Ryzen 5000 / 3000 CPUs) PCIe 3.0 (Ryzen G-Series CPUs) 1 x PCIe x1 Slot |
| Storage | 1 x M.2 Socket 3 (NVMe / SATA SSD) 4 x SATA 6Gb/s Ports RAID 0 / 1 / 10 Support |
| USB | Back Panel: 4 x USB 3.2 Gen1, 2 x USB 2.0 Internal: 2 x USB 3.2 Gen1 Header, 4 x USB 2.0 |
| Internal Connectors | 24-pin ATX Power Connector 8-pin CPU Power Connector CPU Fan Header 2 x System Fan Headers 3 x ARGB Gen2 Headers 1 x RGB Header 1 x M.2 Connector 4 x SATA Ports Front Panel Header Front Panel Audio Header USB 3.2 Header 2 x USB 2.0 Headers TPM Header Clear CMOS Jumper |

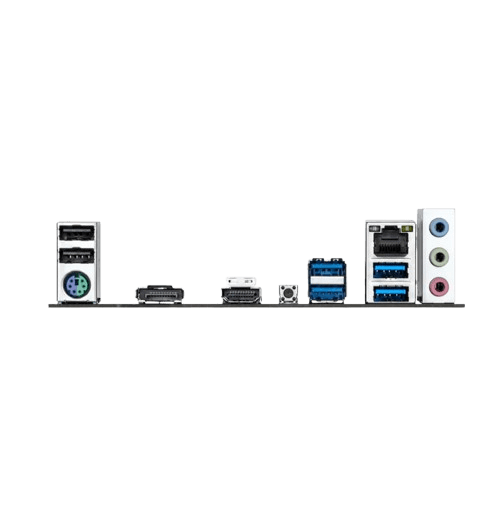

| Back Panel Ports | 2 x USB 2.0 4 x USB 3.2 Gen1 1 x PS/2 Port 1 x DisplayPort 1 x HDMI 1 x RJ45 LAN 3 x Audio Jacks 1 x Q-Flash Plus Button |
| BIOS | 128 Mbit Flash AMI UEFI BIOS |
| Operating System | Windows 11 64-bit Windows 10 64-bit |
| Form Factor | Micro ATX (23.3cm x 19.8cm) |
