Description
Description :

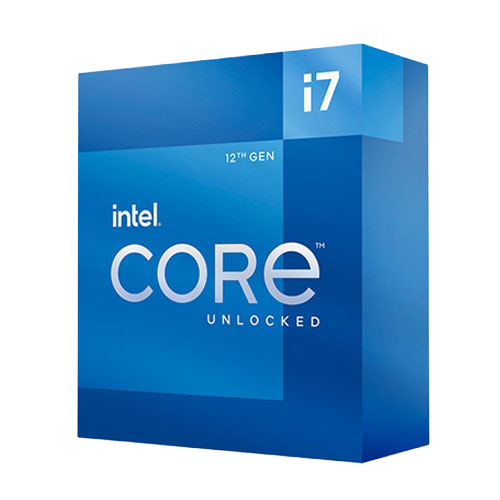

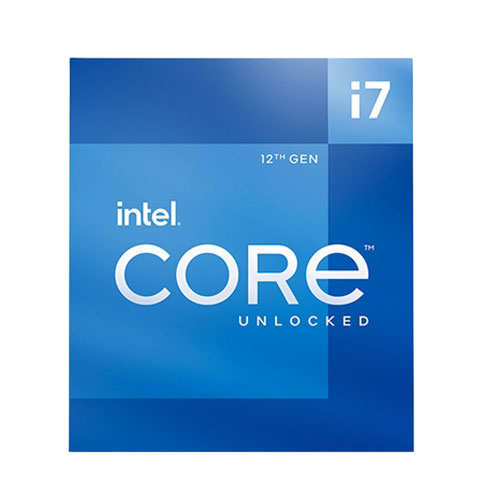

| Intel Core™ i7-12700K Processor (25M Cache- up to 5.00 GHz) | ||
| Essentials | ||
| Product Collection | 12th Generation Intel® Core™ i7 Processors | |
| Code Name | Products formerly Alder Lake | |
| Vertical Segment | Desktop | |
| Processor Number | i7-12700K | |
| Status | Launched | |
| Launch Date | Q4’21 | |
| Lithography | Intel 7 | |
| Use Conditions | PC/Client/Tablet | |
| CPU Specifications | ||
| Total Cores | 12 | |
| No of Performance-cores | 8 | |
| No of Efficient-cores | 4 | |
| Total Threads | 20 | |
| Max Turbo Frequency | 5.00 GHz | |
| Intel Turbo Boost Max Technology 3.0 Frequency | 5.00 GHz | |
| Performance-core Max Turbo Frequency | 4.90 GHz | |
| Efficient-core Max Turbo Frequency | 3.80 GHz | |
| Performance-core Base Frequency | 3.60 GHz | |
| Efficient-core Base Frequency | 2.70 GHz | |
| Cache | 25 MB Intel® Smart Cache | |
| Total L2 Cache | 12 MB | |
| Processor Base Power | 125 W | |
| Maximum Turbo Power | 190 W | |
| Supplemental Information | ||
| Embedded Options Available | No | |
| Memory Specifications | ||
| Max Memory Size (dependent on memory type) | 128 GB | |
| Memory Types | Up to DDR5 4800 MT/s Up to DDR4 3200 MT/s | |
| Max No of Memory Channels | 2 | |
| Max Memory Bandwidth | 76.8 GB/s | |
| Processor Graphics | ||
| Processor Graphics | Intel® UHD Graphics 770 | |
| Graphics Base Frequency | 300 MHz | |
| Graphics Max Dynamic Frequency | 1.50 GHz | |
| Graphics Output | eDP 1.4b | DP 1.4a | HDMI 2.1 | |
| Execution Units | 32 | |
| Max Resolution (HDMI) | 4096 x 2160 @ 60Hz | |
| Max Resolution (DP) | 7680 x 4320 @ 60Hz | |
| Max Resolution (eDP – Integrated Flat Panel) | 5120 x 3200 @ 120Hz | |
| DirectX Support | 12 | |
| OpenGL Support | 4.5 | |
| Multi-Format Codec Engines | 2 | |
| Intel Quick Sync Video | Yes | |
| Intel Clear Video HD Technology | Yes | |
| No of Displays Supported | 4 | |
| Device ID | 0x4680 | |
| OpenCL Support | 2.1 | |
| Expansion Options | ||
| Direct Media Interface (DMI) Revision | 4 | |
| Max No of DMI Lanes | 8 | |
| Scalability | 1S Only | |
| PCI Express Revision | 5.0 and 4.0 | |
| PCI Express Configurations | Up to 1×16+4 | 2×8+4 | |
| Max No of PCI Express Lanes | 20 | |
| Package Specifications | ||
| Sockets Supported | FCLGA1700 | |
| Max CPU Configuration | 1 | |
| Thermal Solution Specification | PCG 2020A | |
| TJUNCTION | 100°C | |
| Package Size | 45.0 mm x 37.5 mm | |
| Advanced Technologies | ||
| Intel Gaussian & Neural Accelerator | 3 | |
| Intel Thread Director | Yes | |
| Intel Deep Learning Boost (Intel® DL Boost) | Yes | |
| Intel Optane Memory Supported | Yes | |
| Intel Speed Shift Technology | Yes | |
| Intel Turbo Boost Max Technology 3.0 | Yes | |
| Intel Turbo Boost Technology | 2 | |
| Intel Hyper-Threading Technology | Yes | |
| Intel Virtualization Technology (VT-x) | Yes | |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes | |
| Intel VT-x with Extended Page Tables (EPT) | Yes | |
| Intel 64 | Yes | |
| Instruction Set | 64-bit | |
| Instruction Set Extensions | Intel® SSE4.1 | Intel® SSE4.2 | Intel® AVX2 | |
| Idle States | Yes | |
| Enhanced Intel SpeedStep Technology | Yes | |
| Thermal Monitoring Technologies | Yes | |
| Intel Volume Management Device (VMD) | Yes | |
| Security & Reliability | ||
| Intel AES New Instructions | Yes | |
| Secure Key | Yes | |
| Intel® OS Guard | Yes | |
| Execute Disable Bit | Yes | |
| Intel Boot Guard | Yes | |
| Mode-based Execute Control (MBE) | Yes | |
| Intel Control-Flow Enforcement Technology | Yes |
