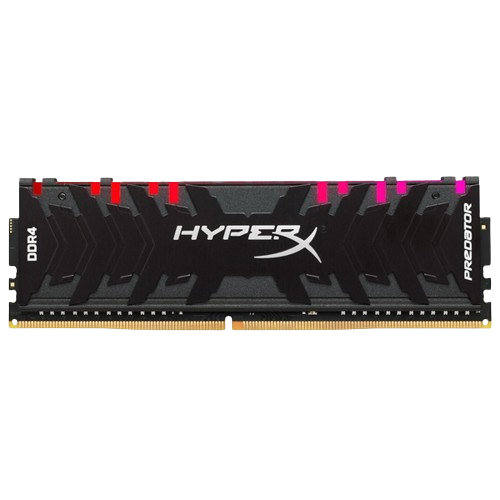

HyperX HX432C16PB3A/8 is a 1G x 64-bit (8GB) DDR4-3200
CL16 SDRAM (Synchronous DRAM) 1Rx8, memory module,
based on eight 1G x 8-bit FBGA components per module. Each
module kit supports Intel® Extreme Memory Profiles
(Intel® XMP) 2.0. Each module has been tested to run at
DDR4-3200 at a low latency timing of 16-18-18 at 1.35V. The
SPDs are programmed to JEDEC standard latency
DDR4-2400 timing of 17-17-17 at 1.2V. Each 288-pin
DIMM uses gold contact fingers. The JEDEC standard
electrical and mechanical specifications are as follows:

• Power Supply: VDD = 1.2V Typical
• VDDQ = 1.2V Typical
• VPP = 2.5V Typical
• VDDSPD = 2.4V to 3.3V
• On-Die termination (ODT)
• 16 internal banks; 4 groups of 4 banks each
• Bi-Directional Differential Data Strobe
• 8 bit pre-fetch
• Burst Length (BL) switch on-the-fly BL8 or BC4(Burst Chop)
• HyperX Infrared Sync working distance 18mm
• Factory preset RGB wave lighting effect
• Height 1.661” (42.20mm)
