| Chipset | INTEL B760 |
| |
| CPU | Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors |
| LGA 1700 |
| |
| Memory | 4x DDR5, Maximum Memory Capacity 256GB |
| Memory Support DDR5 6800+(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz |
| Max. overclocking frequency: |
| • 1DPC 1R Max speed up to 6800+ MHz |
| • 1DPC 2R Max speed up to 6400+ MHz |
| • 2DPC 1R Max speed up to 6000+ MHz |
| • 2DPC 2R Max speed up to 5600+ MHz |
| |
| Supports Intel® XMP 3.0 OC |
| Supports Dual-Controller Dual-Channel mode |
| Supports non-ECC, un-buffered memory |
| |
| Onboard Graphics | 2x HDMI™ |
| Support HDMI™ 2.1, maximum resolution of 4K 60Hz* |
| 2x DisplayPort |
| Support DP 1.4, maximum resolution of 4K 60Hz* |
| *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. |
| |
| Slot | 2x PCI-E x16 slot |
| 1x PCI-E x1 slot |
| PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) |
| PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) |
| PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) |
| |
| Audio | Realtek® ALC897 Codec |
| 7.1-Channel High Definition Audio |
| |
| Storage | 2x M.2 |
| M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices |
| M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices |
| 4x SATA 6G |
| * SATA8 will be unavailable when installing M.2 SATA SSD in the M2_2 slot. |
| |
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
| |
| USB | 2x USB 2.0 (Rear) |
| 4x USB 2.0 (Front) |
| 2x USB 5Gbps Type A (Rear) |
| 4x USB 5Gbps Type A (Front) |
| 1x USB 5Gbps Type C (Front) |
| 2x USB 10Gbps Type A (Rear) |
| |
| LAN | Realtek® RTL8125BG 2.5G LAN |
| |
| Internal IO | 1x Power Connector(ATX_PWR) |
| 2x Power Connector(CPU_PWR) |
| 1x CPU Fan |
| 1x Pump Fan |
| 2x System Fan |
| 2x Front Panel (JFP) |
| 1x Chassis Intrusion (JCI) |
| 1x Front Audio (JAUD) |
| 1x Com Port (JCOM) |
| 2x Addressable V2 RGB LED connector (JARGB_V2) |
| 1x RGB LED connector(JRGB) |
| 1x TPM pin header(Support TPM 2.0) |
| 4x USB 2.0 ports |
| 4x USB 5Gbps Type A ports |
| 1x USB 5Gbps Type C ports |
| |
| WIRELESS LAN & BLUETOOTH | Intel® Wi-Fi 6E |
| The Wireless module is pre-installed in the M.2 (Key-E) slot |
| Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps |
| Supports 802.11 a/ b/ g/ n/ ac/ ax |
| |
| Supports Bluetooth® 5.3, FIPS, FISMA |
| |
| * Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11. |
| ** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11. |
| |
| LED FEATURE | 4x EZ Debug LED |
| |

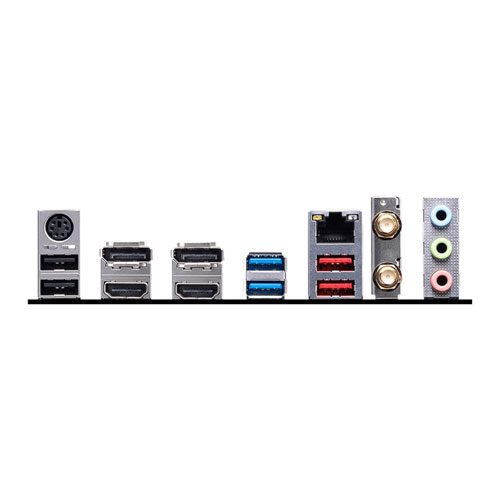

| BACK PANEL PORTS | Keyboard / Mouse |
| DisplayPort |
| USB 3.2 Gen 1 5Gbps (Type-A) |
| 2.5G LAN |
| Wi-Fi / Bluetooth |
| USB 2.0 |
| HDMI™ |
| USB 3.2 Gen 2 10Gbps (Type-A) |
| Audio Connectors |
| |
| OPERATING SYSTEM | Support for Windows® 11 64-bit, Windows® 10 64-bit |
| |
| PCB Info | mATX |
| 243.84mmx243.84mm |
