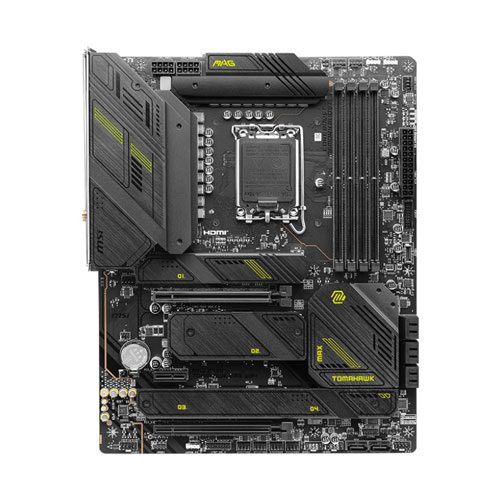

| Chipset |
INTEL Z790 |
|
|
| CPU |
Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors |
|
LGA 1700 |
|
|
| Memory |
4x DDR5 UDIMM, Maximum Memory Capacity 256GB |
|
Memory Support 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz |
|
Max. overclocking frequency: |
|
• 1DPC 1R Max speed up to 7800+ MHz |
|
• 1DPC 2R Max speed up to 6600+ MHz |
|
• 2DPC 1R Max speed up to 6400+ MHz |
|
• 2DPC 2R Max speed up to 5600+ MHz |
|
|
|
Supports Intel® XMP3.0 OC |
|
Supports Dual-Controller Dual-Channel mode |
|
Supports non-ECC, un-buffered memory |
|
|
| Onboard Graphics |
1x HDMI™ |
|
Support HDMI™ 2.1, maximum resolution of 4K 60Hz* |
|
1x DisplayPort |
|
Support DP 1.4, maximum resolution of 8K 60Hz* |
|
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. |
|
|
| Slot |
2x PCI-E x16 slot |
|
1x PCI-E x1 slot |
|
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) |
|
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) |
|
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) |
|
|
| Audio |
Realtek® ALC4080 Codec |
|
7.1-Channel USB High Performance Audio |
|
Supports up to 32-Bit/384 kHz playback on front panel |
|
|
| Storage |
4x M.2 |
|
M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280/2260 devices |
|
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices |
|
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices |
|
M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices |
|
8x SATA 6G |
|
*PCI_E1 slot will be Gen5x8 when installing M.2 SSD in the M2_1 slot. |
|
*SATA_1 & SATA_2 will be unavailable when installing M.2 SATA SSD in the M2_3 slot. |
|
|
| RAID |
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
|
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices |
|
*SATA_A1_A2 do not support RAID function. |
|
|
| USB |
4x USB 2.0 (Front) |
|
4x USB 5Gbps Type A (Rear) |
|
2x USB 5Gbps Type A (Front) |
|
4x USB 10Gbps Type A (Rear) |
|
1x USB 10Gbps Type C (Rear) |
|
1x USB 10Gbps Type C (Front) |
|
1x USB 20Gbps Type C (Rear) |
|
|
| LAN |
Intel® 2.5Gbps LAN |
|
|
| Internal IO |
1x Power Connector(ATX_PWR) |
|
2x Power Connector(CPU_PWR) |
|
1x CPU Fan |
|
1x Pump Fan |
|
6x System Fan |
|
2x Front Panel (JFP) |
|
1x Chassis Intrusion (JCI) |
|
1x Front Audio (JAUD) |
|
1x Tuning Controller connector(JDASH) |
|
3x Addressable V2 RGB LED connector (JARGB_V2) |
|
1x RGB LED connector(JRGB) |
|
1x TPM pin header(Support TPM 2.0) |
|
1x USB4 card connector (JTBT_U4_1, supports RTD3) |
|
4x USB 2.0 ports |
|
2x USB 5Gbps Type A ports |
|
1x USB 10Gbps Type C ports |
|
|
| WIRELESS LAN & BLUETOOTH |
Wi-Fi 7 |
|
The Wireless module is pre-installed in the M.2 (Key-E) slot |
|
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps |
|
Supports 802.11 a/ b/ g/ n/ ac/ ax/ be |
|
|
|
Supports Bluetooth® 5.4**, MLO, 4KQAM |
|
|
|
* 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 SV3. |
|
** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 support schedule depends on MSFT Windows 11 plan. |
|
|
| LED FEATURE |
4x EZ Debug LED |
|
|

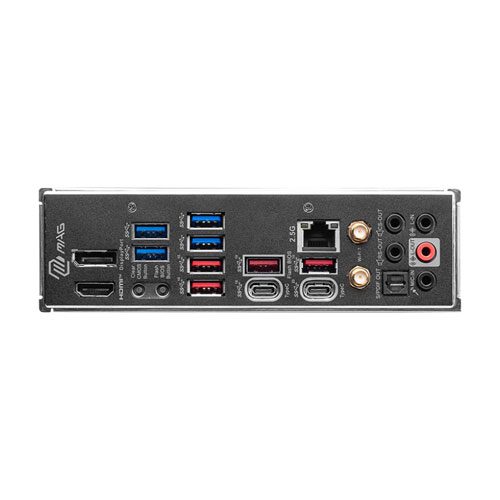

| BACK PANEL PORTS |
Display Port |
|
USB 3.2 Gen 1 5 Gbps (Type-A) |
|
USB 3.2 Gen 2 10Gbps (Type-A) |
|
2.5G LAN |
|
Wi-Fi / Bluetooth |
|
Audio Connectors |
|
HDMI™ |
|
Clear CMOS |
|
Flash BIOS |
|
USB 3.2 Gen 2 10Gbps (Type-A) |
|
USB 3.2 Gen 2 10Gbps (Type-C) |
|
USB 3.2 Gen 2×2 20Gbps (Type-C) |
|
|
| OPERATING SYSTEM |
Support for Windows® 11 64-bit, Windows® 10 64-bit |
|
|
|
|
|
|
| PCB Info |
ATX |
|
243.84mmx304.8mm |
