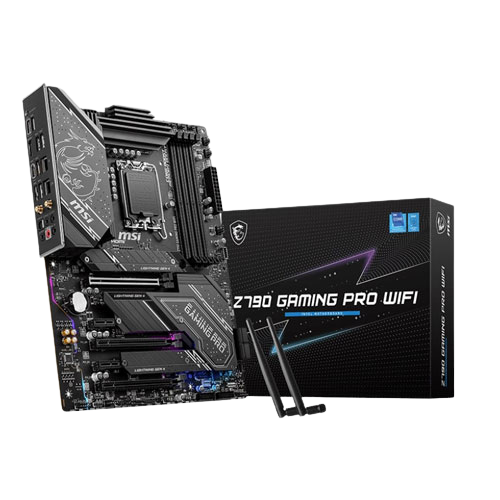

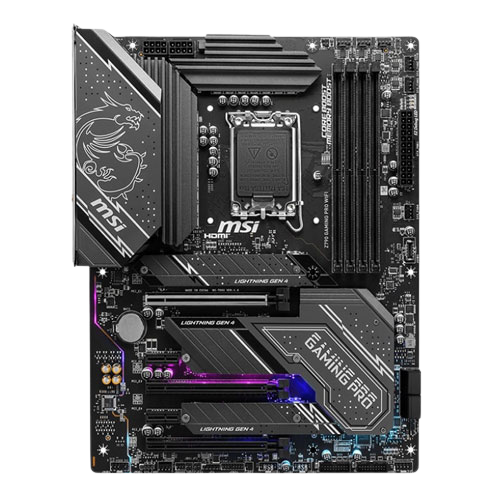

| CHIPSET |
INTEL Z790 |
| |
|
| CPU SUPPORT |
Supports 12th/13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors |
| |
LGA 1700 |
| |
|
| MEMORY |
4x DDR5, Maximum Memory Capacity 192GB |
| |
Memory Support 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz |
| |
Max. overclocking frequency: |
| |
• 1DPC 1R Max speed up to 7200+ MHz |
| |
• 1DPC 2R Max speed up to 6400+ MHz |
| |
• 2DPC 1R Max speed up to 6000+ MHz |
| |
• 2DPC 2R Max speed up to 5600+ MHz |
| |
|
| |
Supports Intel® XMP 3.0 OC |
| |
Supports Dual-Controller Dual-Channel mode |
| |
Supports non-ECC, un-buffered memory |
| |
|
| ONBOARD GRAPHICS |
1x HDMI™ |
| |
Support HDMITM 1.4 with HDR, maximum resolution of 4K 30Hz* |
| |
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. |
| |
|
| EXPANSION SLOT |
3x PCI-E x16 slot |
| |
2x PCI-E x1 slot |
| |
PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) |
| |
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) |
| |
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) |
| |
PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset) |
| |
PCI_E5 Gen PCIe 4.0 supports up to x4 (From Chipset) |
| |
|
| STORAGE |
3x M.2 |
| |
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260/2242 devices |
| |
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices |
| |
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices |
| |
4x SATA 6G |
| |
|
| RAID |
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices |
| |
Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices |
| |
|
| USB |
4x USB 2.0 (Front) |
| |
4x USB 3.2 Gen1 Type A (Rear) |
| |
4x USB 3.2 Gen1 Type A (Front) |
| |
3x USB 3.2 Gen2 Type A (Rear) |
| |
1x USB 3.2 Gen2 Type C (Front) |
| |
1x USB 3.2 Gen2x2 Type C (Rear) |
| |
|
| LAN |
Realtek® RTL8125BG 2.5Gbps LAN |
| |
Realtek® RTL8111H 1Gbps LAN |
| |
|
| WIRELESS / BLUETOOTH |
Intel® Wi-Fi 6E |
| |
The Wireless module is pre-installed in the M.2 (Key-E) slot |
| |
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps |
| |
Supports 802.11 a/ b/ g/ n/ ac/ ax |
| |
|
| |
Supports Bluetooth® 5.3, FIPS, FISMA |
| |
* Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11. |
| |
** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11. |
| |
|
| AUDIO |
Realtek® ALC897 Codec |
| |
7.1-Channel High Definition Audio |
| |
Supports S/PDIF output |
| |
|
| INTERNAL I/O |
1x Power Connector(ATX_PWR) |
| |
2x Power Connector(CPU_PWR) |
| |
1x CPU Fan |
| |
1x Pump Fan |
| |
5x System Fan |
| |
2x Front Panel (JFP) |
| |
1x Chassis Intrusion (JCI) |
| |
1x Front Audio (JAUD) |
| |
1x TBT connector (JTBT, supports RTD3) |
| |
1x Tuning Controller connector(JDASH) |
| |
2x Addressable V2 RGB LED connector (JARGB_V2) |
| |
1x RGB LED connector(JRGB) |
| |
1x TPM pin header(Support TPM 2.0) |
| |
4x USB 2.0 ports |
| |
4x USB 3.2 Gen1 Type A ports |
| |
1x USB 3.2 Gen2 Type C ports |
| |
|
| LED FEATURE |
4x EZ Debug LED |
| |
|

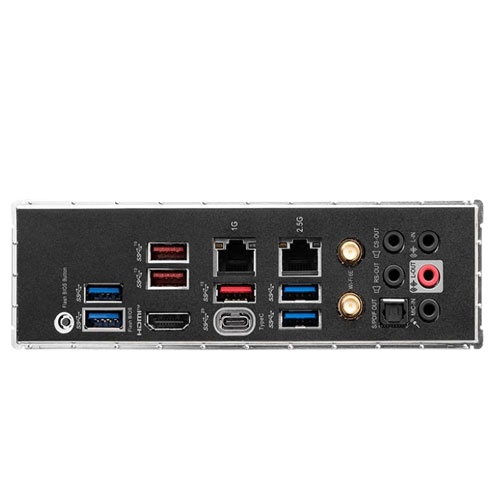

| BACK PANEL PORTS |
USB 3.2 Gen 1 5Gbps Type-A |
| |
USB 3.2 Gen 2 10Gbps Type-A |
| |
1G LAN |
| |
2.5G LAN Port |
| |
Wi-Fi / Bluetooth Antenna |
| |
HD Audio Connectors |
| |
Flash BIOS Button |
| |
HDMI™ 1.4 Port |
| |
USB 3.2 Gen 2×2 20Gbps Type-C |
| |
USB 3.2 Gen 1 5Gbps Type-A |
| |
Optical S/PDIF OUT |
| |
|
| |
|
| OPERATING SYSTEM |
Support for Windows® 11 64-bit, Windows® 10 64-bit |
| |
|
| PCB DIMENSION (W × L) |
ATX |
| |
243.84mmx304.8mm |
