Description

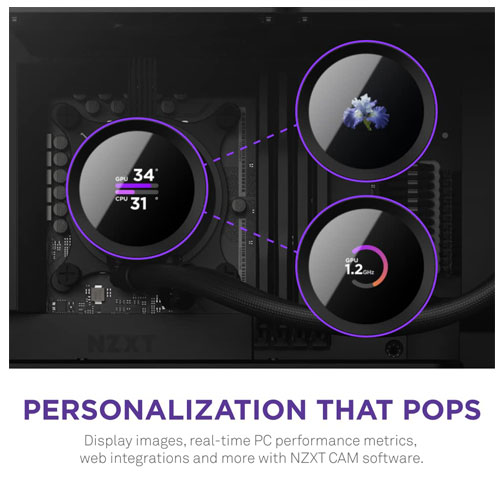

| CAP | ||
| Material | Aluminum and plastic | |
| Display Orientation | Software adjustable Default, +90, +180, and -90 Degrees | |
| Display Panel Active Area | 1.54″ (39.1mm) | |
| Display Resolution | 240 x 240 px | |
| Display Brightness | 300 cd/m² | |
| Display Panel Type | Transmissive TFT, 262K color | |
| WATER BLOCK | ||
| Dimensions | Diameter: 74.7mm H: 55.97mm | |
| Material | Block: Copper, Housing: Plastic | |
| PUMP | ||
| Motor Speed | 800 – 2,800 ± 300RPM | |
| Power | 12V DC, 0.3A | |
| RADIATOR | ||
| Dimensions | 123 x 275 x 30mm | |
| Material | Aluminum | |
| TUBE | ||
| Length | 400mm | |
| Material | Ultra-low Evaporation Rubber with Nylon Braided Sleeve | |

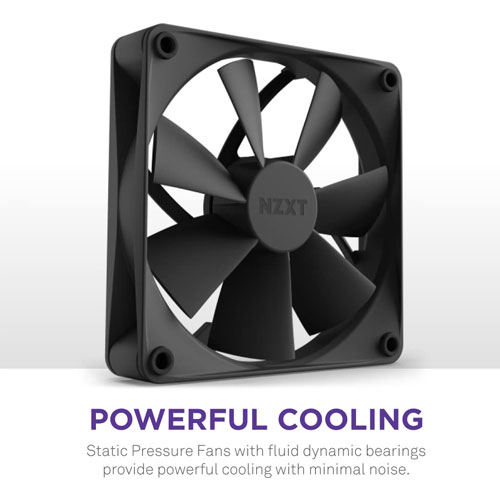

| FAN(S) | ||
| Model | F120P Static Pressure Fan | |
| Quantity | 2 | |
| Dimension | 120 x 120 x 26mm | |
| Speed | 500-1,800 ± 180 RPM | |
| Air Flow | 21.67 – 78.02 CFM | |
| Air Pressure | 0.75 – 2.7mm-H2O | |
| Noise | 17.9 – 30.6dBA | |
| Bearing | Fluid Dynamic Bearing | |
| Power Consumption | 12V DC, 0.23A, 2.76W | |
| Connector | 4-pin PWM | |
| COMPATIBLE SOCKET & CPU | ||
| Intel Socket | LGA 1700 & 1200/115X | |
| Intel | Core i9 / Core i7 / Core i5 / Core i3 / Pentium / Celeron | |
| AMD Socket | AM5, AM4, sTRX4*, TR4* (*Threadripper bracket not included) | |
| AMD | Ryzen 9 / Ryzen 7 / Ryzen 5 / Ryzen 3 / Threadripper |
