Description

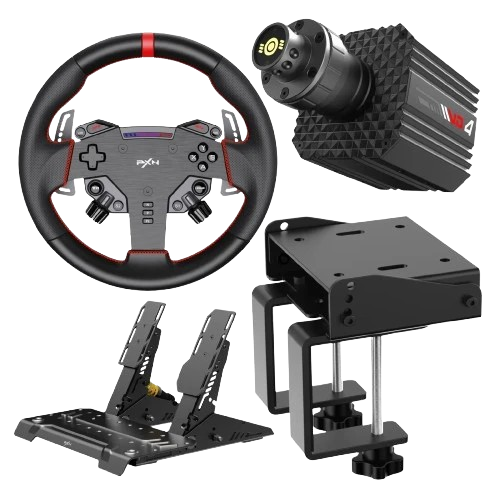

| Model | PXN VD4 Bundle |
| Product type | SimRacing Kit |
| Libra | approx. 7.5 kg |
| Platform | PC (Windows 7/8/10/11) |
| Software | PXN SimRacing |
| Base dimensions | Base approx. 175 × 125 × 125 mm, steering wheel approx. 280 × 280 × 112 mm, pedals approx. 350 × 342 × 224 mm |
| Display | Lack |
| Compatible pedals | PXN PD HM C |
| Engine type | Low-inertia multi-pole Direct Drive servo motor |
| Sensor type | 24-bit magnetic encoder in the base, Hall-Effect sensors in the PD HM pedals |
| Maximum pressing force | Brake up to 10 kg (with option up to 20 kg with additional inserts), gas up to 8 kg |
| Steering wheel mounting system | 46mm Quick Release System, aerospace-grade conductive slider between base and wheel |
| Material of manufacture | Aluminum base housing; W AS steering wheel – aluminum alloy + microfiber; PD HM pedals – steel / metal structure |
| Encoder resolution | 24-bit, over 16.7 million pulses/rev, >46,600 pulses/° |
| Gear system | Gear shifting with steering wheel paddles |
| USB refresh rate | Wired USB, <1 ms input lag |
| Number of buttons | W AS steering wheel – up to 19 control functions |
| Gear shift paddles | Magnetic aluminum blades with Hall-Effect sensors |
| Vibration / Telemetry | PXN Sense+ System |
| Regulation | PD HM pedals – adjustable angle (starting at 60°), height and spacing; pedal curve adjustment in software |
| Communication method | Wired USB connection to PC; |
| Ports | USB port for PC, RJ45/RJ11/USB-C connectors for pedals and accessories |
| Installation method | For desk tops, frames and dashboards using mounting holes and a Z8 clamp |
| Desk clamp | PXN Z8 Mounting Clamp |
