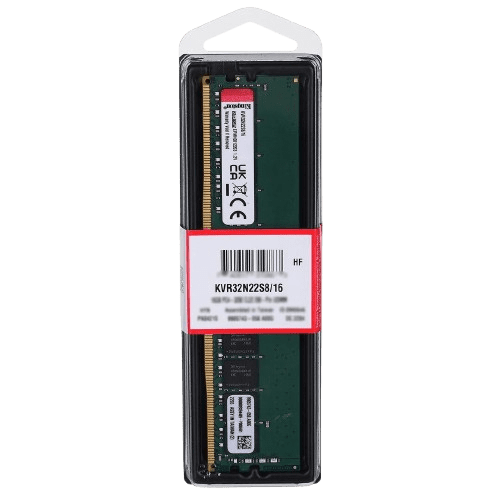

RAM KINGSTON 16GB DDR4 KVR32N22S8/16 MEMORY is available at PCBUILDERS.LK. Upgrade your system with the RAM KINGSTON 16GB DDR4 KVR32N22S8/16 MEMORY, designed to enhance your desktop’s performance. This high-quality RAM operates at a voltage of 1.2V, ensuring efficient power consumption while delivering exceptional speed. With a cycle time of 22 and a minimum row active time of 32ns, this memory module is built for optimal performance in demanding applications.

The RAM KINGSTON 16GB DDR4 KVR32N22S8/16 MEMORY features low-power auto self-refresh technology, making it ideal for both gaming and professional use. Its single-rank design and on-die termination contribute to reliable data transmission, while the on-board I2 serial presence-detect EEPROM ensures compatibility with a wide range of motherboards. With a storage temperature range of -55°C to +100°C, this memory is built to withstand various conditions.

Invest in the RAM KINGSTON 16GB DDR4 KVR32N22S8/16 MEMORY today and experience a significant boost in your desktop’s capabilities. Backed by a 3-year warranty, this memory module is a reliable choice for anyone looking to upgrade their system. Visit PCBUILDERS.LK for more information and to make your purchase.

SPECIFICATIONS


CL(IDD) : 22 cycles

Row Cycle Time (tRCmin) : 45.75ns(min.)

Refresh to Active/Refresh : 350ns(min.)
Command Time (tRFCmin)

Row Active Time (tRASmin) : 32ns(min.)

UL Rating : 94 V – 0

Operating Temperature : C to +85o C

Storage Temperature : -55o C to +100o C


FEATURES
Power Supply: VDD = 1.2V Typical

VDDQ = 1.2V Typical

VPP = 2.5V Typical

VDDSPD = 2.2V to 3.6V

Nominal and dynamic on-die termination (ODT) for
data, strobe, and mask signals

Low-power auto self refresh (LPASR)

Data bus inversion (DBI) for data bus

On-die VREFDQ generation and calibration

Single-rank

On-board I2 serial presence-detect (SPD) EEPROM

16 internal banks; 4 groups of 4 banks each

Fixed burst chop (BC) of 4 and burst length (BL) of 8
via the mode register set (MRS)

Selectable BC4 or BL8 on-the-fly (OTF)

Fly-by topology

Terminated control command and address bus
PCB: Height 1.23” (31.25mm)

RoHS Compliant and Halogen-Free
