Description
| General Feature | ||

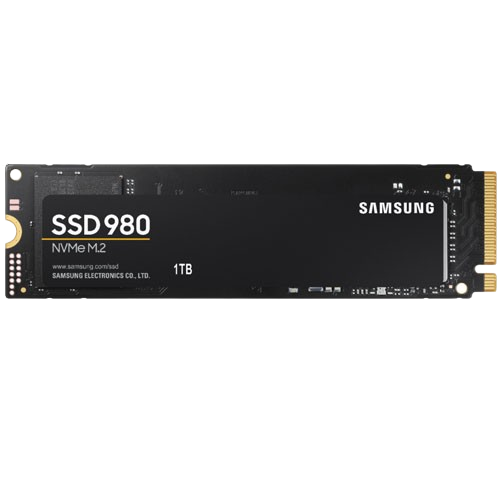

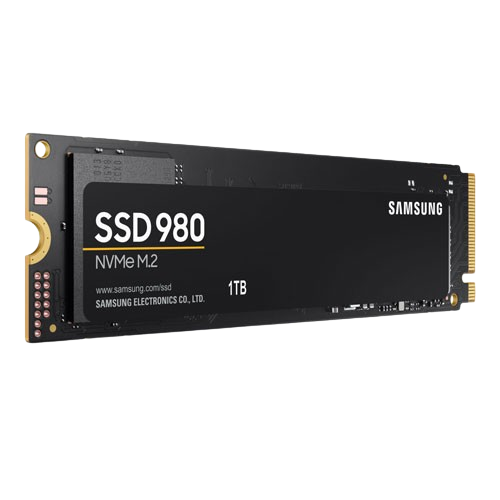

| Product Type | 980 PCIe® 3.0 NVMe® SSD 1TB | |
| Family Line | 980 PCIe® 3.0 NVMe® SSD | |
| Capacity | 1TB | |
| Interface | PCIe® Gen 3.0 x4, NVMe® 1.4 | |
| Dimension (WxHxD) | 80.15 x 2.38 x 22.15 (mm) | |
| Performance | Speed | |
| Read/write speeds up to: 3,500/3,000MB/s | ||
| Encryption | AES 256-bit Full Disk Encryption, TCG/Opal V2.0, Encrypted Drive (IEEE1667) | |
| Type | ||
| Interface | PCIe® Gen 3.0 x4, NVMe 1.4 | |
| Storage | Capacity | |
| Capacity | 1,000GB (1GB=1 Billion byte by IDEMA) * Actual usable capacity may be less | |
| (due to formatting, partitioning, operating system, applications or otherwise) | ||
| Key Features | ||
| Sequential Read Speed | Up to 3,500 MB/s * Performance may vary based on system hardware & configuration | |
| Sequential Write Speed | Up to 3,000 MB/s * Performance may vary based on system hardware & configuration | |
| Cache Memory | HMB(Host Memory Buffer) | |
| Trim Support | Supported | |
| S.M.A.R.T. Support | Supported | |
| GC (Garbage Collection) | Auto Garbage Collection Algorithm | |
| WWN Support | Not supported | |
| Device Sleep Mode Support | Yes | |
| NVMe | PCIe® 3.0 | |
| General | ||
| Average Power Consumption | Average: 4.6 W* Actual power consumption may vary depending on system hardware | |
| & configuration | ||
| Power consumption (Idle) | Max. 45 mW * Actual power consumption may vary depending on system hardware | |
| & configuration | ||
| Reliability (MTBF) | 1.5 Million Hours Reliability (MTBF) | |
| Environmental Specs | ||
| Shock | 1,500 G & 0.5 ms (Half sine) | |
| Form Factor | ||
| Product | M.2 2280 |
