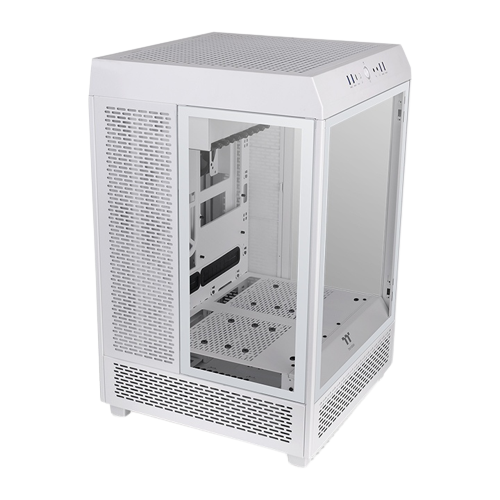

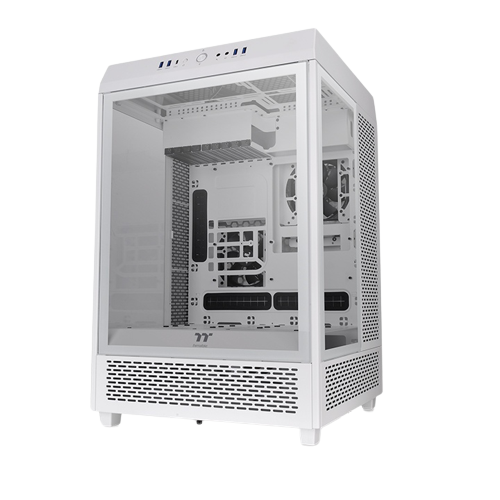

THERMALTAKE THE TOWER 500 MID-TOWER SNOW WHITE GAMING
Whether you’re a creator, enthusiast, gamer, or simply a regular user, the Tower 500 snow is designed for you.
Modeled after our legendary Tower 900 super chassis, the Tower 500 snow was created with the direction of inheriting all the significant functions while minimizing the overall footprint. On top of that, the Tower 500 snow allows additional support for an All-In-One liquid cooler, support for an E-ATX motherboard (max 12”x 12”), or any ATX motherboard. Users can build their PC the way they want.
-
- The image is for reference only.

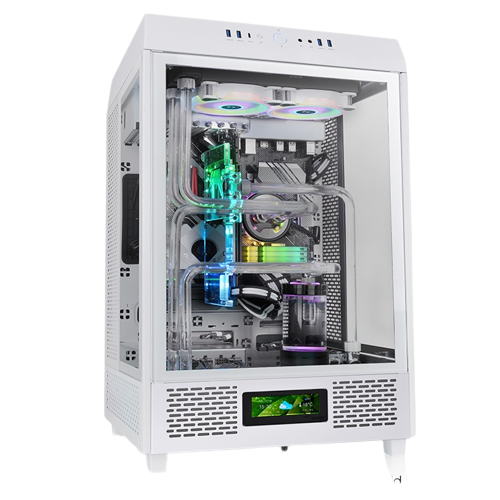

The Tower 500 snow’s versatile interior is designed to suit the needs of both all-in-one and custom liquid cooling solutions, and it offers three 4mm tempered glass panels located at the front and sides, serving simultaneous protection while allowing the perfect showcase of your internal components.
-
- The image is for reference only.
Maximize your Tower 500 snow’s visual effects by upgrading it with our optimal LCD Panel Kit.
The 3.9” LCD Display allows you to monitor real-time information and upload any images or GIFs to add extra flair using the TT RGB Plus 2.0 software. It also allows you to interact with the cooling components that feature the same LCD displays. The latest version includes climate mode and time mode for users to expand the usage of our LCD displays.
-
- The image is for reference only.
At Thermaltake, we always stress test our products under harsh conditions to ensure product quality. The Tower 500 snow products were tested at 100% full load for 30 minutes, with the most high-end CPU, GPU, and motherboard at the time of test, while paring with a consumer-style setup, allowing us to test how the chassis performs under real-world situations.
Test System
- CPU:Intel Core i9 12900K (TDP 125W/OC 241 W)
- M/B:ASUS ROG MAXIMUS Z690 HERO
- GPU:GIGABYTE AORUS GeForce RTX™ 3090 XTREME
- RAM:TOUGHRAM Z-ONE RGB DDR5 64G (16G x 4)
- SSD:Plextor PX-128M6V
- PSU:Toughpower TF1 1550W-TT Premium Edition
- CPU Cooler:TOUGHLIQUID Ultra 360 All-In-One Liquid Cooler
- FANs: AIO: TOUGHFAN Turbo 120mm x 3
- Chassis: Standard Fan x 2 (Rear)
-
- The image is for reference only.
Thermal images were taken during thermal testing. As you can see in the below photos, we were able to ensure that the cold air intakes and hot air exhausts are well-developed when designing this chassis, ensuring the interior temperature stays low and stable at all times.
2 x 120mm pre-installed rear fans were tested to be placed at specific positions to enhance cooling performance, preventing overheating for the CPU and GPU.
The Tower 500 snow has a new fan bracket that can be either installed vertically or horizontally to house 2 extra 120mm fans or a 240mm radiator.
Covered by seven magnetic easily detachable particle filters, the chassis is designed to keep out dust, dirt, and grime. The quick release mechanism makes cleaning easy and straightforward giving the user more freedom to what they like while spending less time on maintenance.
-
- The image is for reference only.
Motherboard
Mini ITX, Micro ATX, ATX, E-ATX (12″ x 12″)
Storage
3.5” HDD x 6
2.5” SSD x 4
Storage
3.5” HDD x 2
2.5” SSD x 4
PSU Length
Max. 200 mm
GPU Length
355 mm (w/o PSU Cover)
325 mm (w/ PSU Cover)
Four USB 3.0 ports and one USB 3.2 Gen 2 Type-C are placed on the top panel to grant direct access when needed.
No more unreachable screw corners or gaps, installation can be a breeze with our Dismantlable Modular Design.
120mm | 240mm | 360mm | 140mm | 280mm | 420mm | |
---|---|---|---|---|---|---|
Top | ● | ● | – | ● | ● | – |
Right-Side | ● | ● | ● | – | – | – |
Rear | – | – | – | – | – | – |
Bottom | ● | ● | – | – | – | – |
120mm | 140mm | 200mm | |
---|---|---|---|
Top | 2 | 2 | – |
Right-Side | 3 | – | – |
Rear | 2 | 2 | – |
PSU Cover | 2 | 2 | – |
Bottom | 2 | – | – |
MANUFACTURER | THERMALTAKE |
---|
