Description
GPU

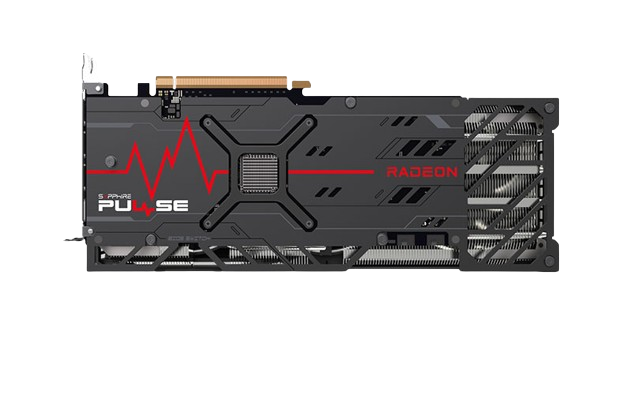

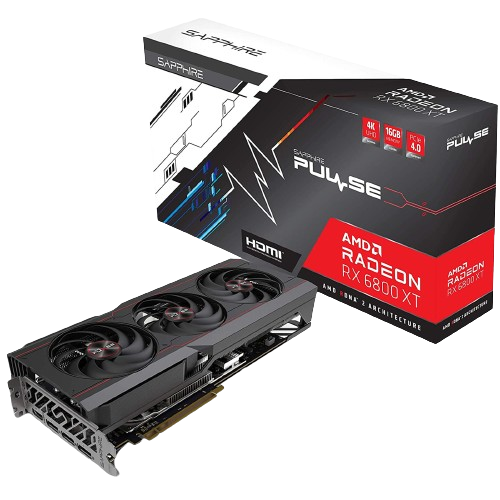

AMD Radeon™ RX 6800 Graphics Card
7nm GPU
AMD RDNA™ 2 Architecture
7nm GPU
AMD RDNA™ 2 Architecture
Engine Clock
- Boost Clock: Up to 2170 MHz
- Game Clock: Up to 1950 MHz
Game Clock is the expected GPU clock when running typical gaming applications, set to typical TGP(Total Graphics Power). Actual individual game clock results may vary.
Stream Processors : 3840
Infinity Cache : 128MB
Ray Accelerators : 60
Memory Size/Bus : 16GB GDDR6
Memory Clock : 16 Gbps Effective
Displays : Maximum 4 Displays
Resolution
- HDMI™: 7680×4320
- DisplayPort1.4: 7680×4320
Interface
PCI-Express 4.0 x16

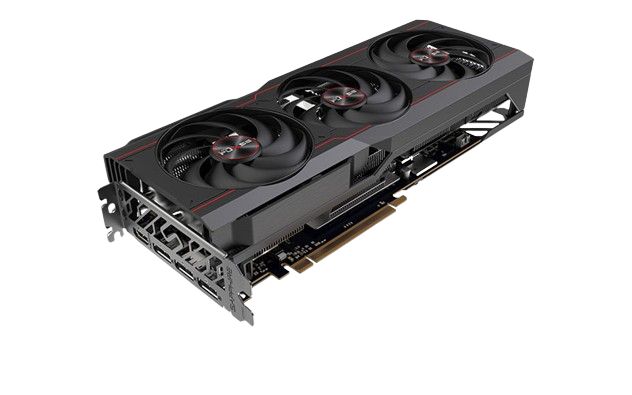

Output
- 1x HDMI
- 3x DisplayPort
BIOS Support
- Dual UEFI
Game Index : 4K
Sapphire Features
- Dual BIOS
- Digital Power Design
- Fuse Protection
- Tri-X Cooling Technology
- Intelligent Fan Control
- Precision Fan Control
- Backplate
- Two-Ball Bearing Fans
- TriXX Supported
- TriXX Boost
AMD Features
- AMD RDNA™ 2 Gaming Architecture
- DirectX® 12 Ultimate
- Hardware Raytracing
- 7nm GPU
- GDDR6 Memory
- PCI® Express 4.0 Support
- AMD FreeSync™ Technology
- DisplayPort™ 1.4 with DSC
- HDMI™ 2.1 VRR
- Video Streaming up to 8K
- Radeon™ VR Ready Premium
- AMD FidelityFX
- Radeon™ Image Sharpening
- Radeon™ Anti-Lag
- Radeon™ Software
- Game Driver Optimizations
- High Performance 4K Gaming

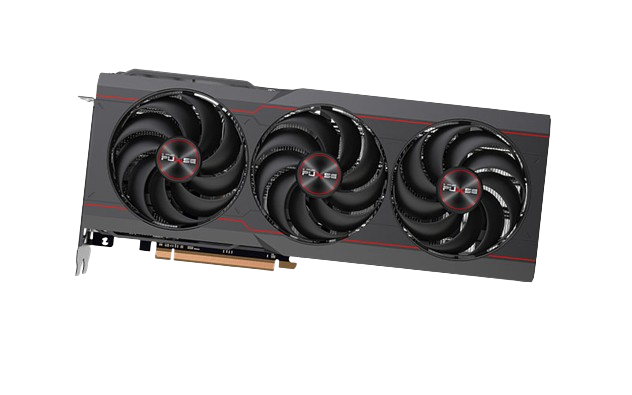

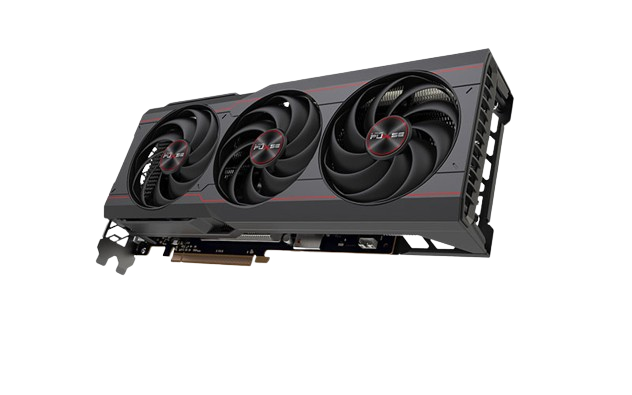

Cooler Type : 3 Fans
Form Factor : 2.5 slot, ATX
Dimension : 303(L)X 127.3(W)X 53.8 (H)mm
Power Consumption
- 280W
OS
Linux®, Windows® 7*, Windows® 10, and Windows 11. 64-bit operating system required
*Does not support all features including but not limited to Hardware Raytracing
System Requirement
- Minimum 650 Watt Power Supply
- 2 x 8-pin Power Connector.
- PCI Express® based PC is required with one X16 lane graphics slot available on the motherboard.
- Minimum 8GB of system memory. 16GB recommended.
