| Model |

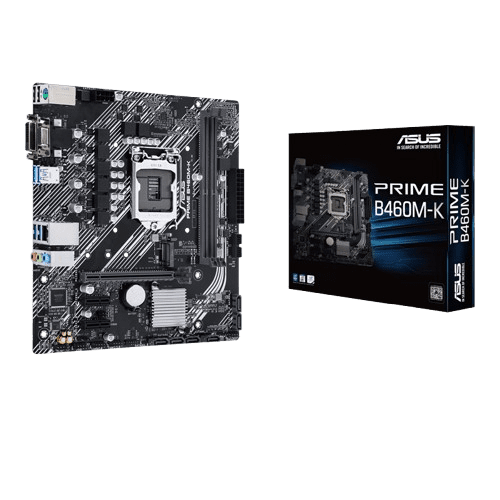

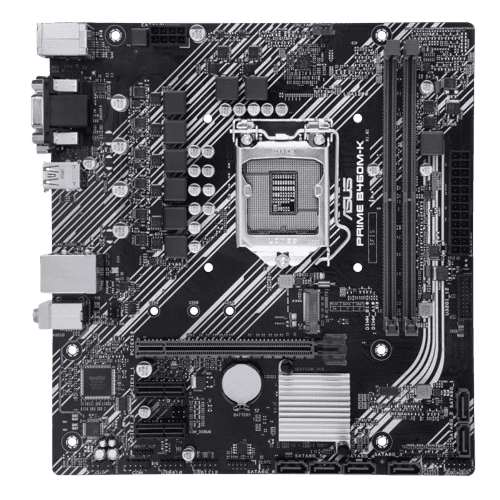

PRIME B460M-K |
| CPU |
- Intel® Socket 1200 for 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors* (refer to www.asus.com for CPU support list)
- Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** (Turbo Boost Max 3.0 support depends on CPU)
- Supports Intel® 14nm CPU
|
| Chipset |
Intel® B460 |
| Memory |
- 2 x DIMM, Max. 64GB
- DDR4 2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered*
- 10th Gen Intel® Core™ i9/i7 CPUs support 2933/2800/2666/2400/2133 natively
- Dual Channel Memory Architecture
- OptiMem
- Supports Intel® Extreme Memory Profile (XMP)
- Refer to Memory QVL on ASUS website
|
| Graphic |
* Graphics specifications may vary between CPU types. |
| Expansion Slots |
- 1 x PCIe 3.0/2.0 x16 (x16 mode)
- 2 x PCIe 3.0/2.0 x1
|
| Storage |
- Total: 1 x M.2 slot and 6 x SATA 6Gb/s ports
- 1 x M.2_1 socket 3, M key, supports 2242/2260/2280 (SATA & PCIe mode)
- 6 x SATA 6Gb/s ports
- Support RAID 0, 1, 5, 10
- Intel® Rapid Storage Technology supported
- Intel® Optane™ Memory Ready
- Note: If M.2 is used in SATA mode, SATA6G_1 cannot be used
|
| LAN |
Realtek® RTL8111H — 1 x Gigabit LAN Controller(s), supports LANGuard |
| Audio |
- Realtek ALC887/897 7.1-Channel High Definition Audio CODEC*
- Features: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Up to 24-Bit/192kHz playback
- LED-illuminated design, Audio shielding, Dedicated audio PCB layers
- Premium Japanese audio capacitors
- Note: Chassis with an HD audio front-panel module is required to support 7.1-channel output
|
| USB Ports |
- Rear / Front total USB 3.2 Gen 1 Type-A: 6 (2 x USB 3.2 Gen 1 + 4 x USB 3.2 Gen 1 Type-A)
- USB 2.0: 6 total (2 x USB 2.0 rear + internal headers for 4 additional ports)
- Internal: 1 x USB 3.2 Gen 1 header (supports 2 additional USB 3.2 Gen 1 ports), 2 x USB 2.0 headers (support additional 4 ports)
|
| Software Features |
- ASUS Exclusive Software: Armoury Crate, AI Suite 3 (Performance & Power utility)
- TurboV EVO, EPU, Digi+ VRM, Fan Xpert
- EZ Update, AI Charger, ASUS CPU-Z, DAEMON Tools
- Norton Anti-virus (Free Trial 60 days), WinRAR
- UEFI BIOS with ASUS EZ DIY (CrashFree BIOS 3, EZ Flash 3, UEFI BIOS EZ Mode)
|
| ASUS Special Features |
- ASUS 5X PROTECTION III: DIGI+ VRM, LANGuard, Overvoltage Protection, Safeslot Core, Stainless-Steel Back I/O
- ASUS Q-Design: Q-DIMM, Q-Slot
|
| Back I/O Ports |
- 4 x USB 3.2 Gen 1 Type-A
- 2 x USB 2.0
- 1 x PS/2 keyboard/mouse combo port
- 1 x DVI-D
- 1 x D-Sub (VGA)
- 1 x LAN (RJ45)
- 3 x Audio jacks
|
| Internal I/O Ports |
- 1 x COM port header
- 1 x AAFP connector (x2 listed in original — AAFP appears twice)
- 1 x USB 3.2 Gen 1 internal connector (supports 2 front USB ports)
- 2 x USB 2.0 connector(s) (support additional 4 USB 2.0 ports)
- 1 x CPU Fan connector (4-pin)
- 1 x Chassis Fan connector (4-pin)
- 1 x M.2 Socket 3 with M key (2242/2260/2280)
- 6 x SATA 6Gb/s connectors
- 1 x S/PDIF out header
- 1 x 24-pin EATX power connector
- 1 x 8-pin ATX 12V power connector
- 1 x System panel (Chassis intrusion header inbuilt)
- 1 x Clear CMOS jumper
- 1 x Speaker connector
|
| Accessories |
- 2 x SATA 6Gb/s cables
- User’s manual
- I/O Shield
- 1 x M.2 Anchor
- 1 x Supporting DVD
|
| BIOS |
128 Mb Flash ROM, UEFI AMI BIOS |
| Manageability |
WOL by PME, PXE |
| Operating System |
Windows® 10 64-bit |
| Form Factor |
mATX — 8.9 inch x 8.3 inch (22.6 cm x 21.1 cm) |
| Notes |
- * When a device in SATA mode is installed on the M.2 socket, SATA6G_1 port cannot be used.
- * A chassis with an HD audio module in the front panel is required to support 7.1-channel audio output.
|
