Description
| Model | |
|---|---|
| Brand | ASUS |
| Series | ROG |

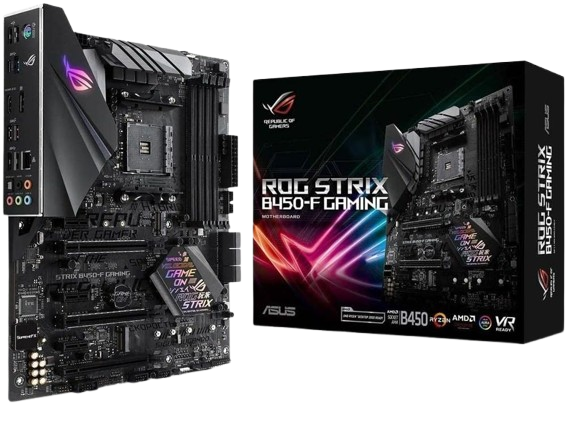

| Model | STRIX B450-F GAMING |
| Supported CPU | |
| CPU Socket Type | AM4 |
| CPU Type | AMD AM4 Socket for 3rd/2nd/1st AMD Ryzen / 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics / Athlon with Radeon Vega Graphics Processors |
| Chipsets | |
| Chipset | AMD B450 |
| Memory | |
| Number of Memory Slots | 4x288pin (DDR4) |
| Memory Standard | 3rd Gen AMD Ryzen Processors DDR4 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2800(O.C.)/ 2666/ 2400/ 2133 MHz Non-ECC, Un-buffered Memory AMD Ryzen 2nd Generation / Ryzen 1st Generation Processors DDR4 3200(O.C.)/ 3000(O.C.)/ 2800(O.C.)/ 2666/ 2400/ 2133 MHz Non-ECC, Un-buffered Memory |
| Maximum Memory Supported | 128GB |
| Channel Supported | Dual Channel |
| Expansion Slots | |
| PCI Express 3.0 x16 | 2 x PCIe 3.0/2.0 x16 (x16 or x8/x4) |
| PCI Express 2.0 x16 | 1 x PCIe 2.0 x16 (max at x4 mode) |
| PCI Express x1 | 3 x PCIe 2.0 x1 |
| Storage Devices | |
| SATA 6Gb/s | 6 x SATA 6Gb/s |
| M.2 | 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x4 mode) 1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x4 mode) |
| SATA RAID | 0/1/10 |
| Onboard Video | |
| Onboard Video Chipset | Integrated in the AMD Ryzen with Radeon Vega Graphics Processors |
| Multi-VGA Output | HDMI/DisplayPort ports |
| Onboard Audio | |
| Audio Chipset | ROG SupremeFX High Definition Audio CODEC S1220A |
| Audio Channels | 8 Channels |
| Onboard LAN | |
| LAN Chipset | Intel i211AT |
| Max LAN Speed | 1Gbps |
| Rear Panel Ports | |
| Back I/O Ports | 1 x PS/2 keyboard/mouse combo port(s) 1 x DisplayPort 1 x HDMI 1 x LAN (RJ45) port(s) 2 x USB 3.1 Gen 2 (red) Type-A 4 x USB 3.1 Gen 1 (blue) 2 x USB 2.0 1 x Optical S/PDIF out 5 x Audio jack(s) |
| Internal I/O Connectors | |
| Onboard USB | 1 x USB 3.1 Gen 1 (up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) |
| Other Connectors | 2 x Aura RGB Strip Headers 1 x TPM header 1 x COM port(s) connector(s) 1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 3 x Chassis Fan connector(s) 1 x AIO_PUMP connector 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s) 1 x Thermal sensor connector(s) 1 x Clear CMOS jumper(s) |
| Physical Spec | |
| Form Factor | ATX |
| LED Lighting | RGB |
| Dimensions (W x L) | 12.0″ x 9.6″ |
| Power Pin | 1 x 24-pin EATX Power connector(s) 1 x 8-pin EATX 12V Power connectors |
| Features | |
| Features | Multi-GPU Support: AMD 3-Way CrossFireX ROG Exclusive Features: ROG RAMCache II, ROG CPU-Z, Pre-mounted I/O Shield, Overwolf, GameFirst IV Special Features: 5-Way Optimization by Dual Intelligent Processors 5 ASUS Exclusive Features: AI Suite 3, Ai Charger, ASUS Grid ASUS EZ DIY: ASUS CrashFree BIOS 3, ASUS EZ Flash 3 Operating System: Windows 10 64-bit, Windows 7 64-bit* |
