Description
| Category | Details |
|---|---|
| Brand | ASUS |
| Series | ROG |

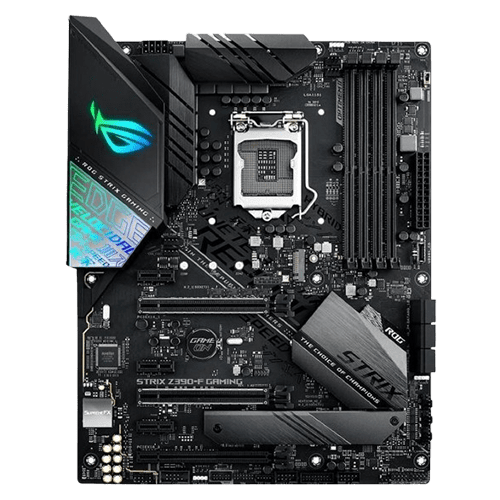

| Model | STRIX Z390-F GAMING |
| Supported CPU | |
| CPU Socket Type | LGA 1151 (300 Series) |
| CPU Type | 9th/8th Gen Intel Core, Pentium Gold, Celeron |
| Supported Technologies | Intel Turbo Boost Technology 2.0 |
| Chipset | |
| Chipset | Intel Z390 |
| Onboard Video | |
| Integrated Graphics | Intel HD Graphics |
| HDMI Max Resolution | 4096 x 2160 @ 30Hz |
| DisplayPort Max Resolution | 4096 x 2304 @ 60Hz |
| Memory | |
| Slots | 4 x 288-pin (DDR4) |
| Max Supported | 64GB |
| Memory Standard | DDR4 4266(O.C.) – 2133 MHz |
| Channel | Dual Channel |
| Expansion Slots | |
| PCI Express 3.0 x16 | 2 x PCIe 3.0/2.0 x16 (x16 or dual x8), 1 x PCIe 3.0/2.0 x16 (x4 mode) |
| PCI Express x1 | 3 x PCIe 3.0/2.0 x1 |
| Storage Devices | |
| SATA 6Gb/s | 6 x SATA 6Gb/s |
| M.2 Slots | 2 x M.2 Socket 3 |
| RAID | 0/1/5/10 |
| Onboard Audio | |
| Chipset | ROG SupremeFX S1220A |
| Audio Channels | 8-Channel |
| Onboard LAN | |
| LAN Chipset | Intel I219-V |
| Max Speed | 1Gbps |
| Rear Panel Ports | |
| HDMI | 1 x HDMI |
| RJ45 | 1 x RJ45 |
| DisplayPort | 1 x DisplayPort |
| USB | 4 x USB 3.1 Gen 2, 2 x USB 3.1 Gen 1, 2 x USB 2.0 |
| Audio Ports | 5 Ports + Optical S/PDIF |
| Physical Specifications | |
| Form Factor | ATX |
| Dimensions | 12.0″ x 9.6″ |
| LED Lighting | RGB |
| Features | |
| Multi-GPU Support | NVIDIA 2-Way SLI, AMD 3-Way CrossFireX |
| ROG Exclusive Features | RAMCache III, GameFirst V, Sonic Studio III |
| Special Features | AI Overclocking, Aura Sync, ASUS Q-Design |
| BIOS | 128MB Flash ROM, UEFI AMI BIOS |
| OS Compatibility | Windows 10 64-bit |
| Package Contents | |
| Accessories | User Manual, SATA Cables, M.2 Screws, SLI HB Bridge, RGB Extensions |
Reviews
There are no reviews yet
