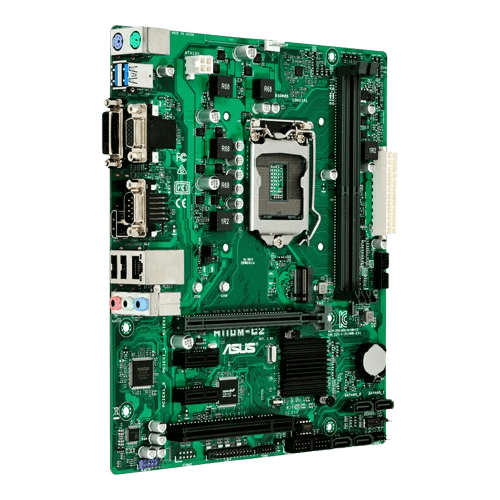

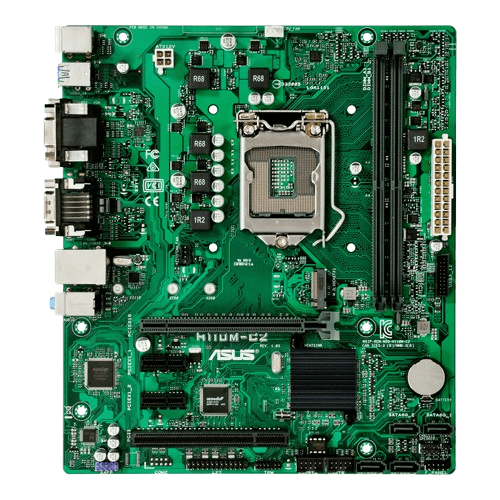

USED ASUS H110M-C2/CSM MOTHERBOARD is available at PCBUILDERS.LK. The USED ASUS H110M-C2/CSM MOTHERBOARD is an excellent choice for building or upgrading your PC. This motherboard supports Intel’s 6th and 7th Generation Core processors, including i7, i5, and i3, ensuring compatibility with a wide range of CPUs. With support for Intel Turbo Boost Technology 2.0, you can expect enhanced performance during demanding tasks.

Featuring a robust Intel H110 chipset, this motherboard allows for up to 32GB of DDR4 memory, with speeds of 2400 MHz supported by 7th generation processors and 2133 MHz by 6th generation ones. The integrated Intel HD Graphics provides reliable visuals, while the multi-VGA output options, including HDMI, DVI-D, and RGB, cater to various display needs.

Whether you’re looking to build a new system or upgrade an existing one, the USED ASUS H110M-C2/CSM MOTHERBOARD offers great value and performance. With a warranty of 3 months, you can shop confidently at PCBUILDERS.LK.

Model
H110M-C2/CSM

CPU
Intel® for 7th/6th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors
Supports Intel® 14nm CPU
Supports Intel® Turbo Boost Technology 2.0
* Refer to www.asus.com for CPU support list

Chipset
Intel® H110

Memory
2 x DIMM, Max. 32GB, DDR4 2400/2133 MHz Memory
* DDR4 2400MHz supported only by 7th Gen processors
* DDR4 2133MHz max with 6th Gen processors
Supports Intel® Extreme Memory Profile (XMP)
* Refer to ASUS QVL for supported memory

Graphics
Integrated Intel® HD Graphics support
Supports Intel® Quick Sync Video, Clear Video HD Technology
Multi-VGA output: HDMI / DVI-D / RGB
HDMI: max. 4096 x 2160 @ 24Hz
DVI-D: max. 1920 x 1200 @ 60Hz
VGA: max. 1920 x 1200 @ 60Hz
Max shared memory: 1024 MB

Expansion Slots
1 x PCIe 3.0/2.0 x16
2 x PCIe 2.0 x1
1 x PCI

Storage
1 x M.2 Socket 3 (PCIe SSD support only)
4 x SATA 6Gb/s ports

LAN
Intel® I219V, 1 x Gigabit LAN Controller

Audio
Realtek ALC887/897 7.1-Channel High Definition Audio CODEC

USB Ports
Intel® H110 chipset:
4 x USB 3.1 Gen 1 (2 rear, 2 mid-board)
6 x USB 2.0/1.1 (2 rear, 4 mid-board)

Special Features
ASUS DIGI+ VRM – 5 Phase digital power design
ASUS 5X Protection II:
– ASUS LANGuard
– ASUS Overvoltage Protection
– ASUS Stainless-Steel Back I/O
– ASUS ESD Guards
ASUS Q-Design:
– ASUS Q-Slot
– ASUS Q-DIMM

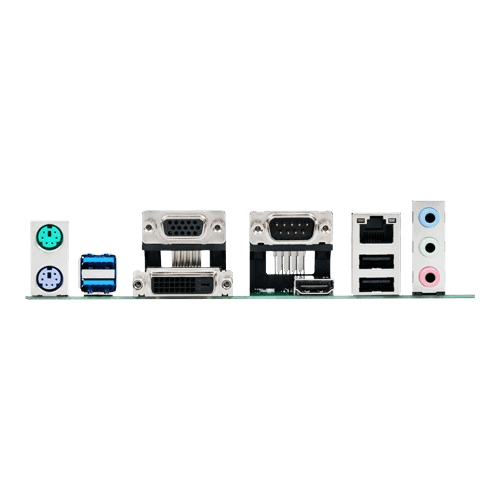

Back I/O Ports
2 x USB 3.2 Gen 1
1 x COM port
1 x PS/2 keyboard (purple)
1 x PS/2 mouse (green)
1 x DVI-D
1 x D-Sub
1 x HDMI
1 x LAN (RJ45)
2 x USB 2.0
3 x Audio jacks

Internal I/O Ports
1 x USB 3.2 Gen 1 header (2 ports)
1 x M.2 Socket 3 (PCIe SSD only)
1 x Chassis intrusion header
2 x USB 2.0 headers (4 ports)
1 x LPT header
4 x SATA 6Gb/s connectors
1 x CPU Fan connector
1 x Chassis Fan connector
1 x 24-pin EATX Power connector
1 x 4-pin ATX 12V Power connector
1 x Front panel audio connector (AAFP)
1 x Internal speaker connector
1 x System panel
1 x Clear CMOS jumper
1 x 14-1 pin TPM connector

Accessories
2 x SATA 6Gb/s cables
1 x M.2 screw package
1 x Support DVD
1 x User’s manual

Operating System
Windows® 8.1 64-bit
Windows® 7 32-bit / 64-bit

Form Factor
mATX (24.4 cm x 21.3 cm)
