Description
| Category | Details |
|---|---|
| CPU | LGA1200 package: – 11th Gen Intel® Core™ i9/i7/i5 processors – 10th Gen Intel® Core™ i9/i7/i5/i3, Intel® Pentium®/Celeron® (limited to processors with 4 MB Intel® Smart Cache, Intel® Celeron® G5xx5 family) * L3 cache varies with CPU. |
| Chipset | Intel® B560 Express Chipset |
| Memory | 11th Gen Intel® Core™ i9/i7/i5 processors: Supports DDR4 up to 4600(O.C.) MHz 10th Gen Intel® Core™ i9/i7: Supports DDR4 up to 2933 MHz 10th Gen Intel® Core™ i5/i3/Pentium®/Celeron®: Supports DDR4 up to 2666 MHz 4 x DDR4 DIMM sockets (up to 128 GB) Dual channel, ECC & non-ECC Un-buffered DIMM support, Extreme Memory Profile (XMP). |
| Onboard Graphics | Integrated Intel® HD Graphics: – 1 x D-Sub (max resolution 1920×1200@60Hz) – 1 x DVI-D (max resolution 1920×1200@60Hz) – 1 x DisplayPort (max resolution 4096×2304@60Hz) – 1 x HDMI (max resolution 4096×2160@30Hz) * Supports up to 3 displays. |
| Audio | Realtek® Audio CODEC, High Definition Audio, Supports 2/4/5.1/7.1-channel configuration |
| LAN | Realtek® GbE LAN chip (1000/100 Mbit) |
| Expansion Slots | 1 x PCI Express x16 (PCIe 4.0), 2 x PCI Express x1 (PCIe 3.0) |
| Storage Interface | CPU: 1 x M.2 (PCIe 4.0 x4/x2 SSD support) Chipset: 1 x M.2 (PCIe 3.0 x4/x2 & SATA SSD support), 6 x SATA 6Gb/s * Intel® Optane™ Memory Ready |
| USB | Back Panel: 1 x USB Type-C (USB 3.2 Gen 1), 3 x USB 3.2 Gen 1, 2 x USB 2.0 Internal: 2 x USB 3.2 Gen 1, 4 x USB 2.0 |
| Internal I/O Connectors | 1 x 24-pin ATX power, 1 x 8-pin ATX 12V power, 1 x CPU fan header, 3 x system fan headers, 1 x addressable LED strip header, 1 x RGB LED strip header, 6 x SATA 6Gb/s connectors, 2 x M.2 sockets, 1 x front panel header, 1 x front panel audio header, 1 x USB 3.2 Gen 1 header, 2 x USB 2.0 headers, 1 x Trusted Platform Module header, 1 x serial port header, 1 x parallel port header, 1 x Clear CMOS jumper, 1 x Q-Flash Plus button. |

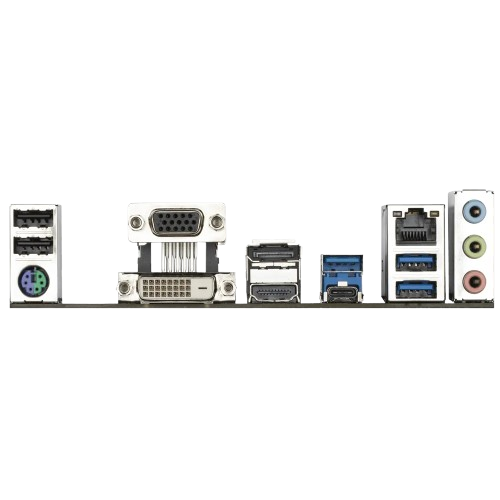

| Back Panel Connectors | 2 x USB 2.0, 1 x PS/2 keyboard/mouse port, 1 x D-Sub, 1 x DVI-D, 1 x DisplayPort, 1 x HDMI, 3 x USB 3.2 Gen 1, 1 x USB Type-C, 1 x RJ-45, 3 x audio jacks |
| I/O Controller | iTE® I/O Controller Chip |
| H/W Monitoring | Voltage, temperature, fan speed detection, fan fail warning, fan speed control |
| BIOS | 1 x 256 Mbit flash, AMI UEFI BIOS |
| Unique Features | APP Center, @BIOS, EasyTune, Fast Boot, Game Boost, ON/OFF Charge, RGB Fusion, Smart Backup, System Information Viewer, Q-Flash Plus, Q-Flash, Xpress Install |
| Bundled Software | Norton® Internet Security (OEM), Realtek® 8118 Gaming LAN Bandwidth Control Utility |
| Operating System | Windows 10 64-bit |
| Form Factor | Micro ATX, 24.4cm x 24.4cm |
