Description
| Item | Motherboard |
|---|---|
| Brand | Colorful |

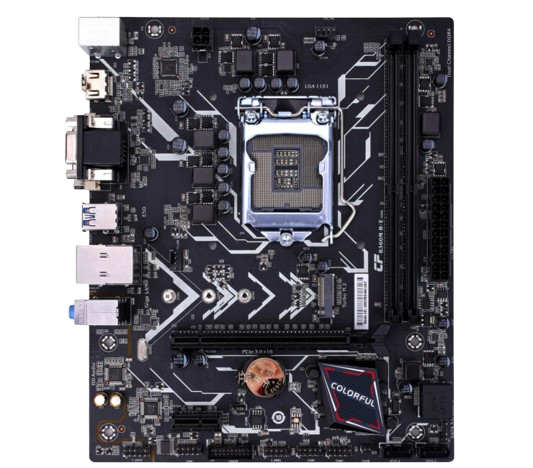

| Model | Battle Axe C.B360M-HD PRO V20 |
| CPU | Supports LGA1151 Coffee Lake-S |
| Max CPU Power Consumption | 65W (TDP) |
| Chipset | Intel B360 |
| Memory | 2 * memory slots Supports dual channel DDR4 2133/2400MHz Supports up to 32GB |
| Expansion Slots | 1 * PCI Express x1 (Gen3) slot 1 * PCI Express 3.0 x 16 (Gen3) slot |
| Storage | 4 * SATA3.0 ports 1 * M.2 supports PCIE x4 SSD & MSATA SSD |
| USB | 6 * USB 3.0 (Gen1) 4 * USB 2.0 (Including the header) |
| Board IO | 1 * PS/2 Mouse/Keyboard Ports 1 * LAN (RJ45) port 4 * USB 3.0 6-channel audio I/O 1 * VGA + DVI + HDMI Port |
| Internal Ports | 1 * 24-pin ATX power connector 1 * 4-pin ATX 12V power connector 1 * 9-pin front panel audio connector 1 * system panel connector 2 * USB 2.0 pin (extending 4 * front USB 2.0 slots) 1 * USB 3.0 (Gen1) (extending 2 * front USB 3.0 ports) 1 * PC speaker connector 1 * CMOS jumper 1 * COM 1 * pci pin (CASE) 2 * fan pins (CPU-FAN, SYS-FAN) |
| Audio | Onboard 6-channel HD audio chipset, supports 3D surround sound |
| Network Card | Onboard 1000M LAN, provides 10/100/1000Mb Ethernet |
| Size | 185 * 225mm / 7.3 * 8.9 inches mATX |
| IO Chip | IT8613E |
| BIOS | 128M UEFI, Supports multiple languages |
| Advanced Power Management | Supports S3, S4, S5 wake-up, phone call startup, timing boot, network S5 wake-up |
| Package Includes | 1 * Motherboard 2 * SATA Cables 1 * Driver CD 1 * I/O Shield 1 * User Manual |
