Description
| Category | Details |
|---|---|
| CPU | Support for 8th & 9th Gen Intel Core i7/i5/i3, Pentium, Celeron (LGA1151) L3 cache varies with CPU |
| Chipset | Intel H370 Express Chipset |
| Memory | 4 x DDR4 DIMM slots (up to 64GB) Dual channel architecture Supports DDR4 2666/2400/2133 MHz ECC & non-ECC (non-ECC mode) XMP supported |
| Onboard Graphics | Intel HD Graphics support D-Sub: 1920×1200@60Hz DVI-D: 1920×1200@60Hz DisplayPort: 4096×2304@60Hz HDMI: 4096×2160@30Hz Supports up to 3 displays Max shared memory: 1GB |
| Audio | Realtek ALC887 codec High Definition Audio 2/4/5.1/7.1-channel S/PDIF Out support |
| LAN | Intel GbE LAN (10/100/1000 Mbps) |
| Expansion Slots | 1 x PCIe x16 (x16 mode) 1 x PCIe x16 (x4 mode) 2 x PCIe x1 PCIe 3.0 support |
| Storage Interface | 2 x M.2 slots (PCIe & SATA support) 6 x SATA 6Gb/s RAID 0/1/5/10 Intel Optane Memory Ready |
| USB | 1 x USB Type-C (USB 3.1 Gen1) 7 x USB 3.1 Gen1 6 x USB 2.0 |
| Internal I/O Connectors | 24-pin ATX power 8-pin CPU power 2 x M.2 sockets 6 x SATA CPU/System fan headers RGB header USB headers TPM, Serial, Parallel headers Clear CMOS jumper |

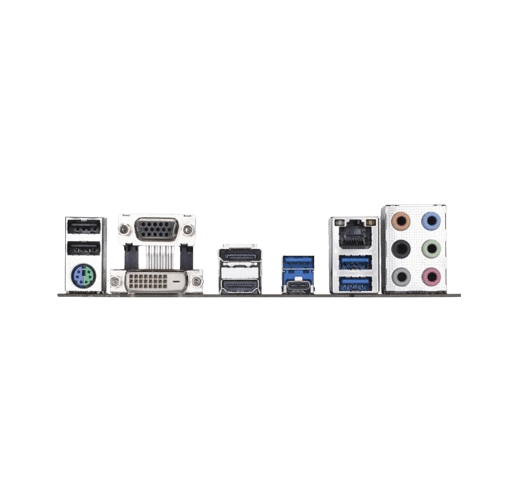

| Back Panel Connectors | PS/2 port D-Sub, DVI-D, HDMI, DisplayPort USB Type-C + USB ports RJ-45 LAN 6 x audio jacks |
| I/O Controller | iTE I/O Controller Chip |
| H/W Monitoring | Voltage, temperature, fan speed detection Overheating & fan fail warning Fan speed control |
| BIOS | 2 x 128 Mbit flash AMI UEFI BIOS DualBIOS support |
| Unique Features | APP Center @BIOS, EasyTune, RGB Fusion Smart Backup, Fast Boot Q-Flash, Xpress Install |
| Bundled Software | Norton Internet Security, cFosSpeed |
| Operating System | Windows 10 64-bit |
| Form Factor | Micro ATX (24.4cm x 24.4cm) |
