Description
| Specification | Details |
|---|---|

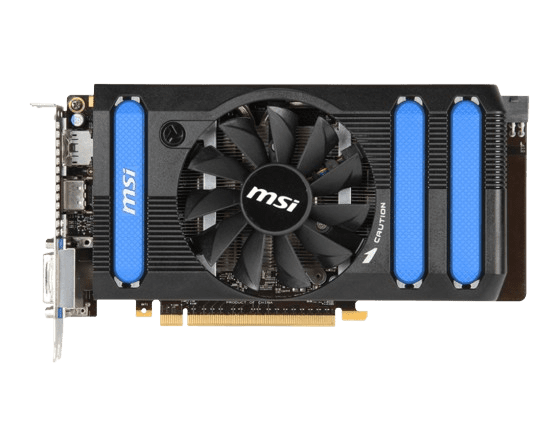

| Graphics Processing Unit | NVIDIA GeForce GTX 660 |
| Interface | PCI Express x16 3.0 |
| Core Clocks | 1006 MHz (Boost Clock: 1072 MHz) |
| Memory Speed | 6008 MHz |
| Memory Size | 2048 MB |
| Memory Type | GDDR5 |
| Memory Bus | 256 bits |
| HDCP Support | Yes |
| Power Consumption | 150 W |
| Recommended PSU | 450 W |
| Card Dimension (mm) | 220 x 111 x 36 mm |
| Weight (Card / Package) | 458 g |
| DirectX Version Support | 12 API |
| OpenGL Version Support | 4.2 |
| Maximum Displays | 4 |

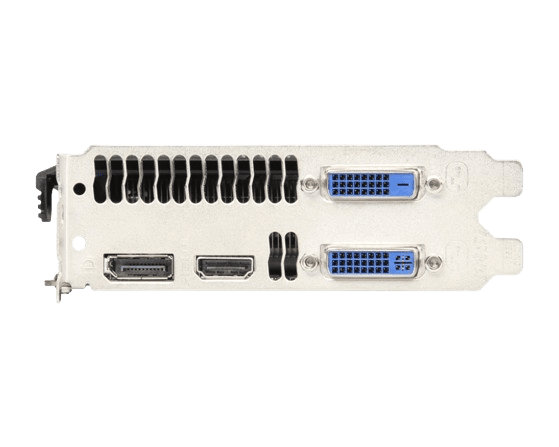

| DVI Connectors | 2 (Dual-link DVI-I x1, Dual-link DVI-D x1) Max Resolution: 2560 x 1600 @60 Hz |
| HDMI Connectors | 1 (version 1.4a) Max Resolution: 4096 x 2160 @24 Hz |
| Mini-HDMI Connectors | 1 (version 1.4a) Max Resolution: 4096 x 2160 @24 Hz 3840 x 2160 @30 Hz – 30bpp 4096 x 2160 @24 Hz – 24bpp |
| DisplayPort | 1 (version 1.2) Max Resolution: 4096 x 2160 @60 Hz |
| Mini DisplayPort | 1 (version 1.2) Max Resolution: 4096 x 2160 @60 Hz |
| RAMDAC Speed (MHz) | 400 |
