| Architecture |
NVIDIA Blackwell |
| DLSS |
DLSS 4 |
| Power Connector |
1 x 8-pin PCIe |
| Lighting |
White LED |
| Form Factor |
SFF-Ready, Compact Dual-Fan |
| Cooling |
IceStorm 2.0 Cooling |
| Fan Technology |
BladeLink Fans, FREEZE Fan Stop |
| Backplate |
Metal Backplate |

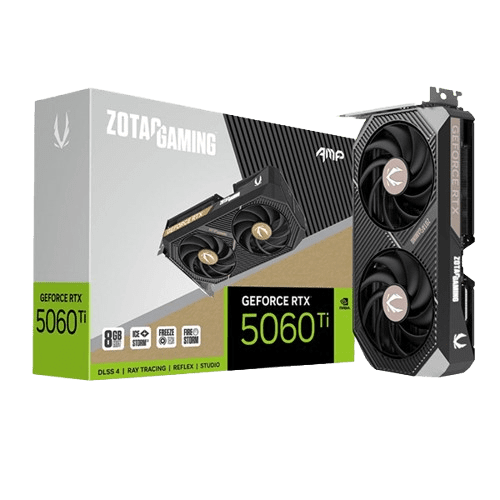

| GPU |
NVIDIA GeForce RTX 5060 Ti |
| CUDA Cores |
4608 |
| Video Memory |
8GB GDDR7 |
| Memory Bus |
128-bit |
| Engine Clock |
2632 MHz |
| Memory Clock |
28 Gbps |
| PCI Express |
PCI Express 5.0 x8 |
| Display Outputs |
3 x DisplayPort 2.1b (UHBR20), 1 x HDMI 2.1b |
| Max Resolution Support |
4K @ 480Hz, 8K @ 165Hz (DP); 4K @ 120Hz HDR, 8K @ 60Hz HDR (HDMI) |
| HDCP Support |
2.3 |
| Multi Display Capability |
Quad Display |
| Recommended Power Supply |
600W |
| Power Consumption |
180W |
| Power Input |
1 x 8-pin |
| DirectX Support |
DirectX 12 Ultimate |
| OpenGL Support |
4.6 |
| Slot Size |
2 |
| SLI Support |
No |
| Supported OS |
Windows 10/11 64-bit (v1809 or later) |
| Card Dimensions |
220.5mm x 120.25mm x 41.6mm (8.7″ x 4.7″ x 1.6″) |
